Assembly Overview - Drive Plate

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drive plate
  2. Screw/replace → Initial tightening: 60 Nm (44 ftlb.) → Final tightening: +90°
  3. Dowel pin
  4. Sensor wheel for engine speed sender
  5. Needle-roller bearing
  6. Shaft sealing ring/replace
  7. Crankshaft
  8. Rubber stopper
  9. Engine speed sender
    10. Fig 1: Overview Of Drive Plate
    G09931615Courtesy of PORSCHE CARS NORTH AMERICA, INC.

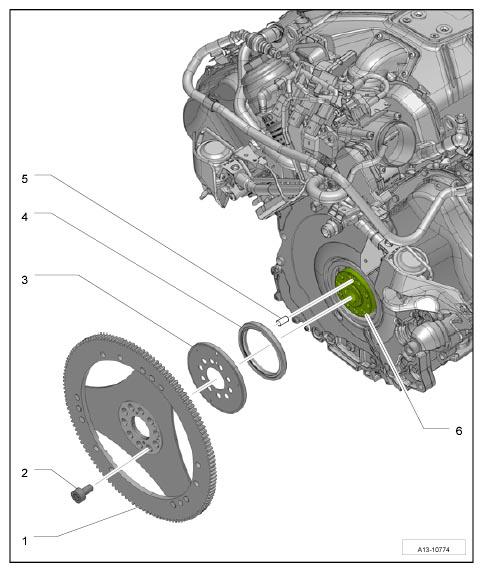

  1. Drive plate
  2. Screw/replace → Initial tightening: 60 Nm (44 ftlb.) → Final tightening: +90°
  3. Sensor wheel, for engine speed
  4. Shaft sealing ring, for crankshaft at transmission side/replace
  5. Dowel pin
  6. Crankshaft
    7. Fig 1: Overview Of Drive Plate
    G09931616Courtesy of PORSCHE CARS NORTH AMERICA, INC.
