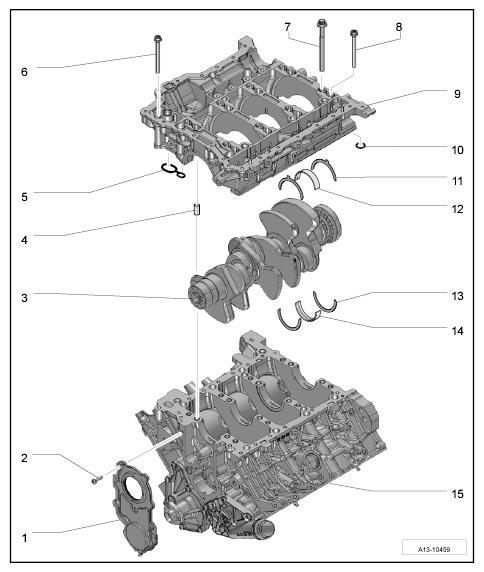

Assembly Overview - Crankshaft
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Joint flange on pulley side/replace
- Screw → Tightening torque: 9 Nm (6.5 ftlb.)
- Crankshaft
- Dowel sleeve/insert in guideframe
- Seal/replace
- Screw
- For guide frame sealing faces on cylinder block
- Different screw lengths and screw heads
- Screw (long, large collar)/replace
- For guide frame, inner row
- Screw (short, small collar)/replace
- For guide frame, outer row
- Guide frame
- Seal/replace
- Thrust plate
- Only on 3rd crankshaft bearing
- Lubricating grooves facingoutwards
- Check secure fitting in guideframe
- Bearing shell
- For guide frame without lubricating groove
- Mark used bearing shells for re-installation, but not on the running surface
- Replace bearing shells worn down to baselayer
- Check installation position
- Insert new bearing shells for guide frame with correct color markings.
- Thrust plate
- Only on 3rd crankshaft bearing
- Lubricating grooves facingoutwards
- Check secure fitting in cylinderblock
- Bearing shell
- For cylinder block with lubricating groove
- Mark used bearing shells for re-installation, but not on the running surface
- Replace bearing shells worn down to baselayer
- Check installationposition
- Insert new bearing shells for guide frame with correct color markings.
- Cylinder block
