Assembly Overview - Balance Shaft

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Balance shaft
Screw → Tightening torque: 60 Nm (44 ftlb.)
Balance weight on transmission side
- Can only be fitted at one position on the balanceshaft
End plate
Screw → Tightening torque: 13 Nm (9.5 ftlb.)
Balance weight on pulley side
- Can only be fitted at one position on the balanceshaft
Screw → Tightening torque: 60 Nm (44 ftlb.)

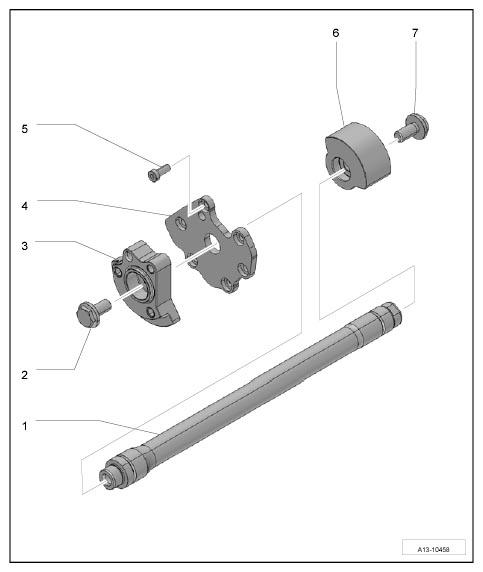

Fig 1: Overview Of Balance Shaft

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
