Apply Sealant On Guide Frame, Position Of Dowel Sleeves

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Clean sealing faces. Sealing faces must be free of oil and grease at top and bottom.

Apply beads of sealant -arrows-  to clean sealing faces of the guide frame as shown.

Groove on the sealing face must be completely filled with sealant.

Beads of sealant must project 1.5...2.0 mm over the sealing face.

Fit gaskets -1-  and -2-  .

Check that dowel sleeves -3-  ... -6-  are inserted in the guide frame at the positions shown.

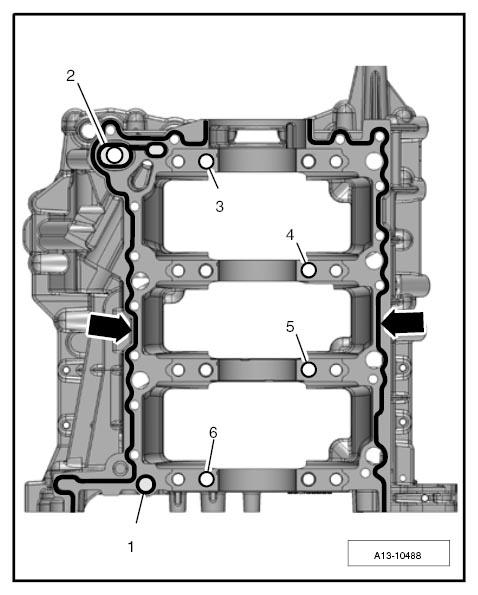

Fig 1: Locating Guide Frame Sealant Applying Area
G09803546Courtesy of PORSCHE CARS NORTH AMERICA, INC.
