Allocation Of Crankshaft Bearing Shells For Guide Frame
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Bearing shells of the correct thickness are allocated to the guide frame at the factory. Colored dots on the side of the bearing shell are used to indicate bearing shell thickness.

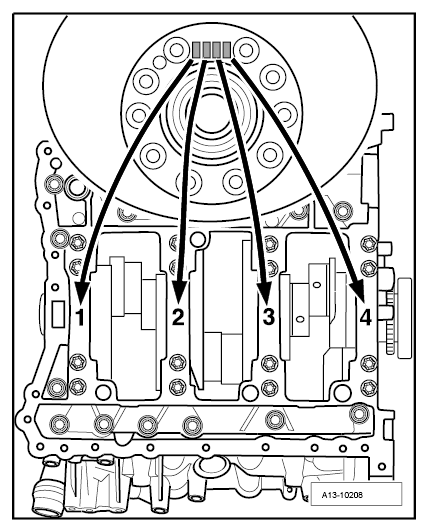

The correct allocation of bearing shells to guide frame is indicated by a sequence of letters on the transmission flange of the crankshaft. The first letter in the sequence stands for bearing "1", the second letter for bearing "2", etc.
| Letter on guide frame | Color of bearing |
|---|---|
| R = | red |
| G = | yellow |
| B = | blue |
| S = | black |
