Allocation Of Crankshaft Bearing Shells For Cylinder Block
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Bearing shells of the correct thickness are allocated to the cylinder block at the factory. Colored dots on the side of the bearing shell are used to indicate bearing shell thickness.

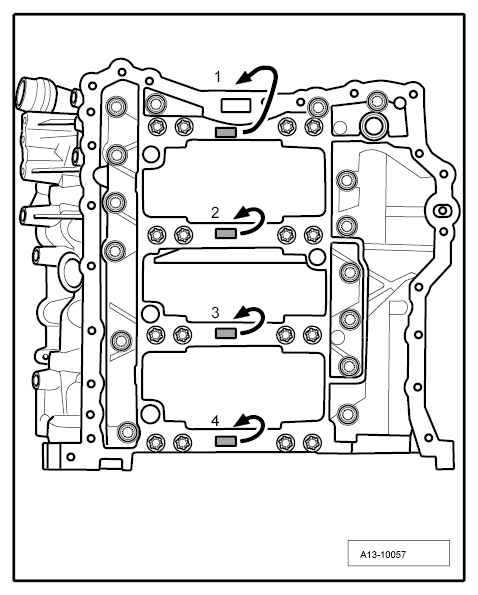

The allocation of the bearing shells to the cylinder block is indicated on the guide frame by a letter next to the relevant bearing item 1... 4.
| Letter on guide frame | Color of bearing |
|---|---|
| R = | red |
| G = | yellow |
| B = | blue |
| S = | black |
