Tightening Torque For Automatic Transmission To Engine

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. M10 x 60  Bi-hexagonal flange screw
  2. M10 x 60  Bi-hexagonal flange screw
  3. M10 x 60  Bi-hexagonal flange screw
  4. M10 x 45  Bi-hexagonal flange screw
  5. M10 x 95  Bi-hexagonal flange screw/for securing starter
  6. M12 x 75  Bi-hexagonal flange screw/for securing starter
  7. M12 x 75  Bi-hexagonal flange screw
  8. M12 x 75  Bi-hexagonal flange screw
  9. M12 x 75  Bi-hexagonal flange screw
  10. M12 x 140 x 90  Bi-hexagonal flange screw
  11. M12 x 140 x 90  Bi-hexagonal flange screw

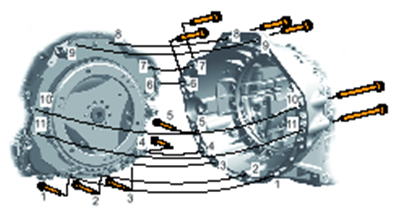

    12. Fig 1: Automatic Transmission To Engine Screw Tightening Sequence
    G09931601Courtesy of PORSCHE CARS NORTH AMERICA, INC.
CONVERTER SCREW TORQUE SPECIFICATION

Item Torque
Initial tightening Final tightening Tolerance
1... 5 15 Nm (11 ftlb.) +105° +/- 30°
6... 11 30 Nm (22 ftlb.) +105° +/- 30°
