WM 1001IN Supporting The Engine On The Body (Cayenne GTS, Cayenne Turbo S, Cayenne S Hybrid, Cayenne S E-Hybrid, Cayenne Turbo, Cayenne (3.0)): Tools
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Designation |
Type |
Number |
Description |
|

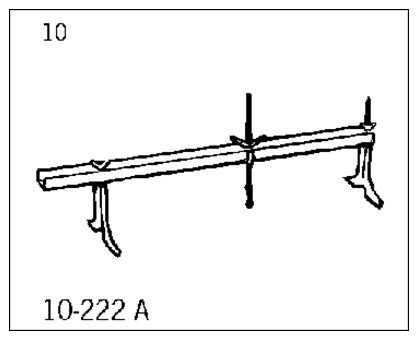

| Support bracket |
VW tool |
10-222 A |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

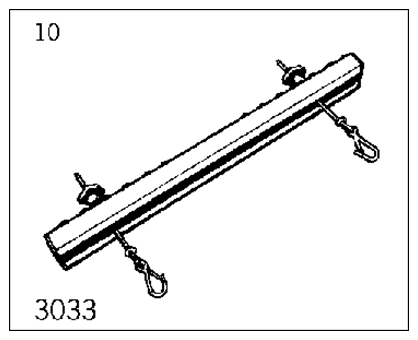

| Lifting tackle |
VW tool |
3033 |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

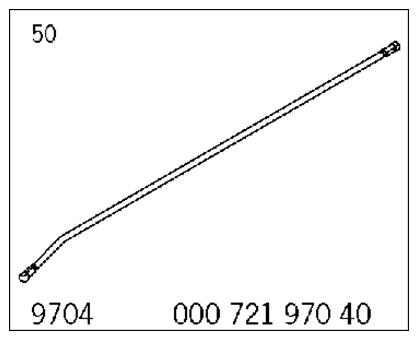

| bonnet stay |
Special tool |
9704 |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

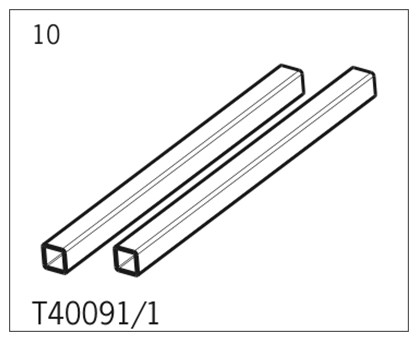

| Pipe |
VW tool |
T40091/1 |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

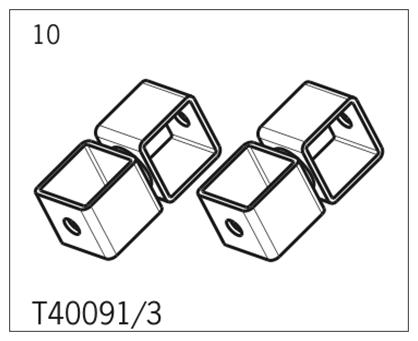

| Joiner |
VW tool |
T40091/3 |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

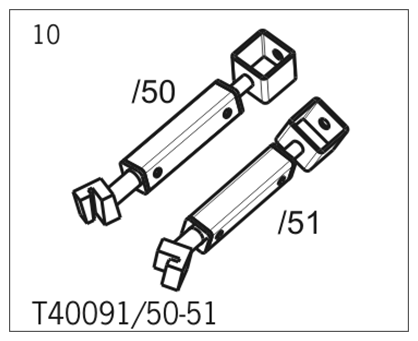

| support |
VW tool |
T40091/50-51 |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

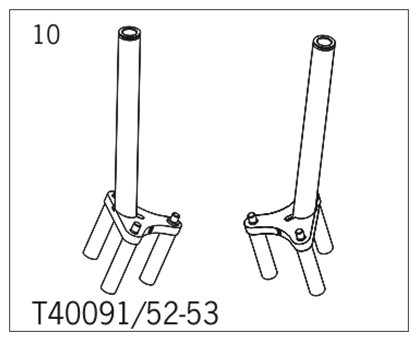

| Support |
VW tool |
T40091/52-53 |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

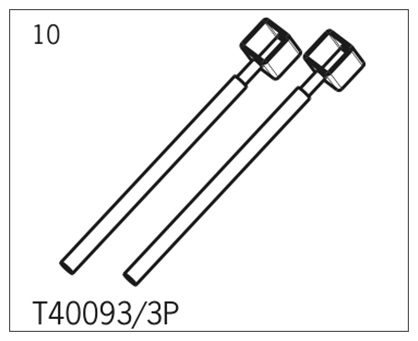

| Support |
VW tool |
T40093/3P |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

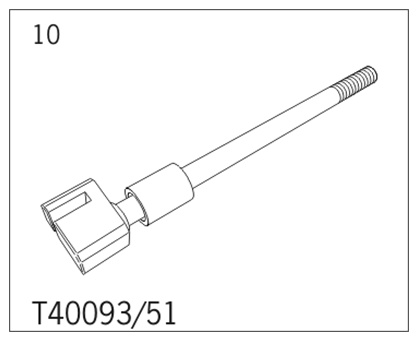

| adjustable foot |
VW tool |
T40093/51 |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
