Tools And Materials: Tools

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Support bracket 10-222 A
  2. Pipe T40091/1
  3. Support T40091/52-53  in combination with head of support T40091/50-51
  4. Support T40093/3P  with adjustable foot T40093/51
  5. Joiner T40091/3
  6. Lifting tackle 3033

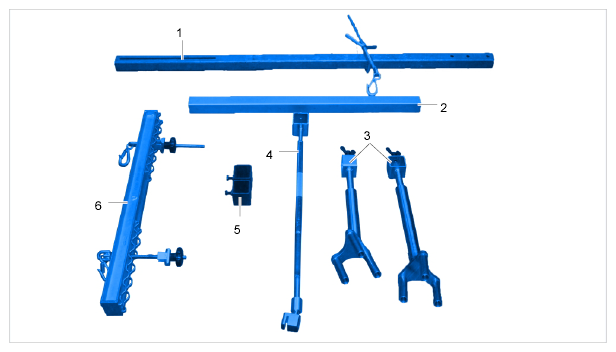

    7. Fig 1: Identifying Engine Supporting Tools
    G09931593Courtesy of PORSCHE CARS NORTH AMERICA, INC.
