Supporting Engine On Mounting Bracket

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing

→ Secure components to prevent them from falling down.

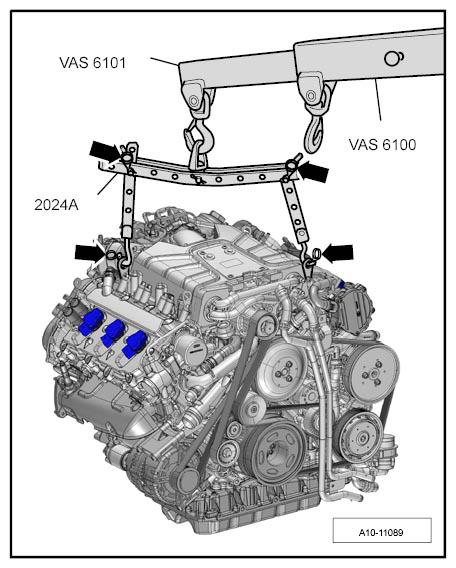

Lifting tackle 2024 A must be engaged on the engine suspension eyelet and on the workshop hoist VAS 6100 WE 1188 as shown.

Fig 1: Lifting Engine Block
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Take up some of the weight of the engine with the workshop hoist, but do not raise the engine.
Unscrew nuts -arrow- for engine mountings at the left and right.

Fig 2: Locating Engine Mountings Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lift engine off engine carrier.

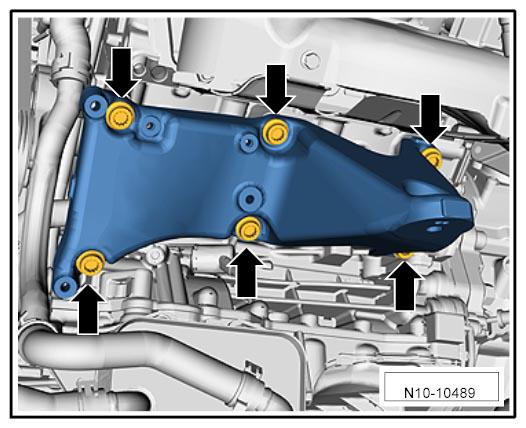

Unscrew screws -arrows- and remove engine support on the left.

Fig 3: Locating Left Engine Support Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

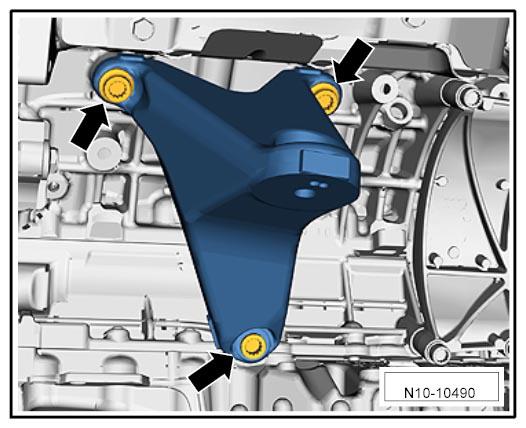

Unscrew screws and remove engine support on the right.

Fig 4: Locating Right Engine Support Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

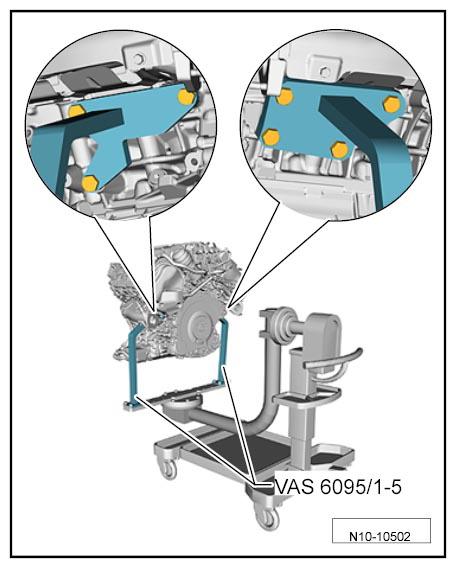

Secure engine with bracket -VAS 6095/1-5- on the bracket for V6 TDI engine VAS 6095/1-4 WE 1337 Mobile Assembly Station WE 1323 as shown. → Tightening torque: 40 Nm (30 ftlb.)

Fig 5: Securing Engine With Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
