Securing V8 Engine On Assembly Support
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Heavy components
- Risk of squashing
→ Wear personal protective gear.
→ Get someone to help if necessary.
WARNING:
Danger of objects or loads falling down
- Risk of squashing or crushing
→ Secure components to prevent them from falling down.
Information
- The engine needs to be suspended on an assembly support for certain repair work .
Information
- A modified engine support is used on the Cayenne E2 because of the Start Stop starter .
- The turbo engine, including flywheel, weighs about 250 kg. To avoid overloading the engine support, make sure that there are no additional loads (e.g. heavy components stored in the vehicle or a person sitting in the vehicle) .
Information
- The pictures shown in this document may differ from the original .

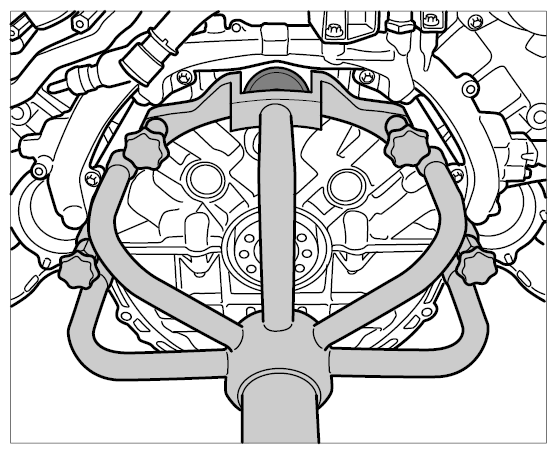

- Secure engine support 9676/1 to the engine. To do this, use the four screws mounting elements 9590 and tighten them. → Engine support

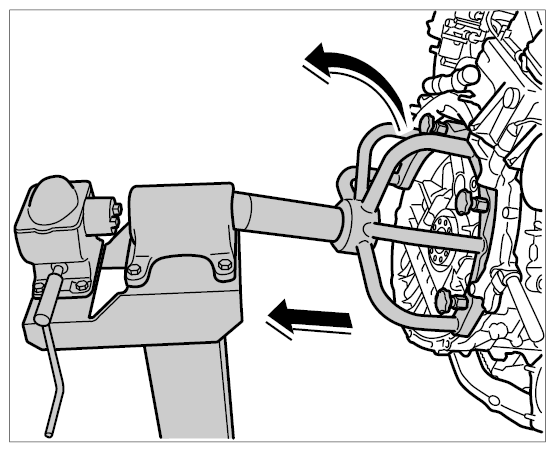

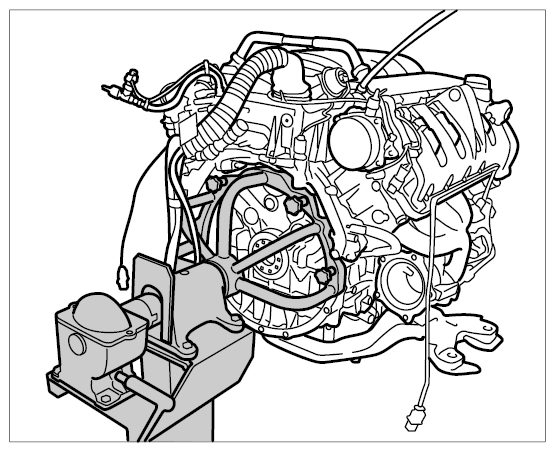

- Move engine in front of the engine support (assembly support) using the workshop crane and guide it in with the help of a second worker. Raise engine so that the engine can be eased in horizontally. → Engine crane and engine on assembly support
- Secure engine on assembly support. → 1001IN SECURING ENGINE ON ASSEMBLY SUPPORT
