Fitting Engine Support

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The engine needs to be suspended on an assembly support for certain repair work .

Remove right engine support arm. To do this, loosen the four fastening screws → Fastening screws

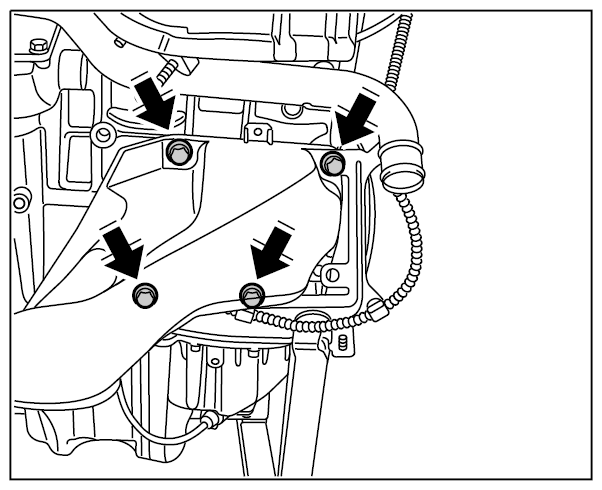

Fig 1: Locating Engine Support Arm Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the engine support engine support 3269 . Make sure the mounting shaft is positioned centrally in the longitudinal direction of the engine. Fit the fastening screws. → Tightening torque: 45 Nm (33 ftlb.)

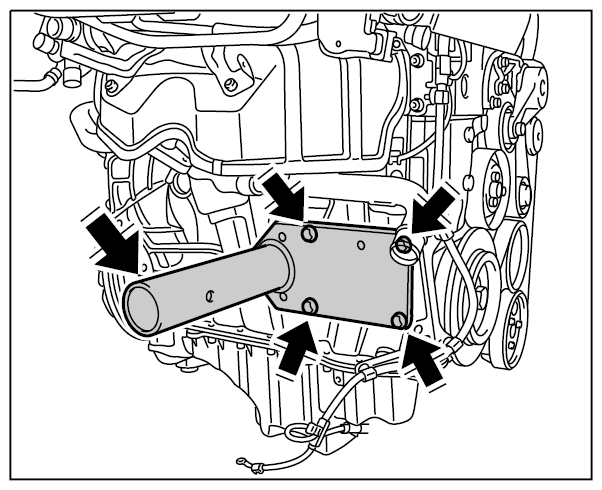

Fig 2: Locating Engine Support Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lift the engine with the workshop crane and secure it on the assembly support. To do this, guide the engine support straight into the assembly support WE 1171 or a similar support, without tilting it.
