Tools And Materials: Tools

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

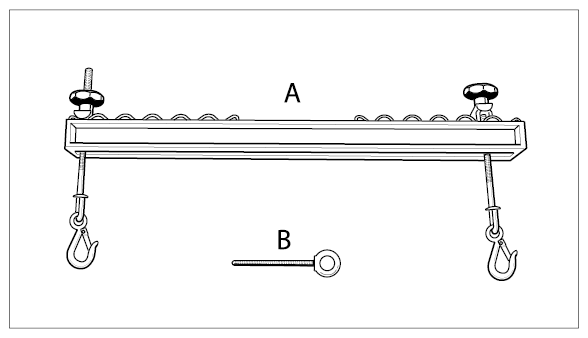

Fig 1: Identifying Suspending Device
G09931576Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Item Designation Source Explanation
-A-  Suspending device 3033  Only this tool is tested and approved by Porsche. It guarantees only vertical traction of the transport eyebolt with no side or transverse forces  .
-B-      This tool is not used on the 4.8-litre engine. The M48/01 and M48/51 have eyelets provided on the engine, like the V6  .
