Securing Engine To Engine Crane

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Heavy components

Risk of squashing

→ Wear personal protective gear.

→ Get someone to help if necessary.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing

→ Secure components to prevent them from falling down.

Information

When removing the new engine from the transport frame, it may be necessary to safeguard the engine against lateral movement
When removing the new engine from the transport frame, it may be necessary to raise the transport frame at the side (flat jack or similar). → Workshop crane and transport frame using a second worker und against scratching by covering it with a blanket .

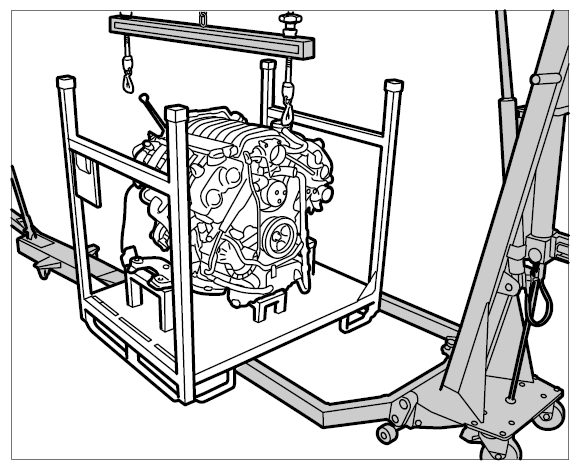

Fig 1: Identifying Workshop Crane And Transport Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The pictures shown in this document may differ from the original .

Pull the design cover of the throttle valve straight up and off, if it is not already removed.
Engage one hook of the suspending device 3033 in the rear transport eyebolt on the engine. Engage the other hook of the suspending device at the front of the engine. Raise the workshop crane slightly and tension the spindles slightly. The suspending device must be adjusted evenly. → Workshop crane on the V8 engine

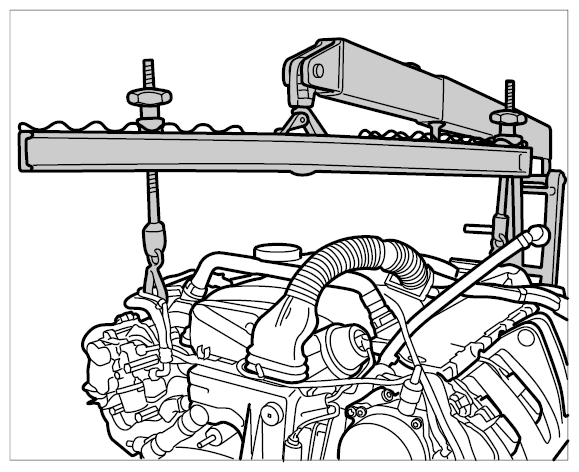

Fig 2: Lifting Engine Using Workshop Crane
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully lift the engine and balance it or separate the engine from the transmission, depending on what you want to do.
