Removing ATF Pan

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew oil drain plug -A-  .
  2. Unscrew overflow pipe -C-  .
  3. Drain ATF.
    Fig 1: Identifying Overflow Pipe On ATF Pan
    G09934575Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Unscrew screws on the ATF pan in diagonally opposite sequence and remove ATF pan -2-  .

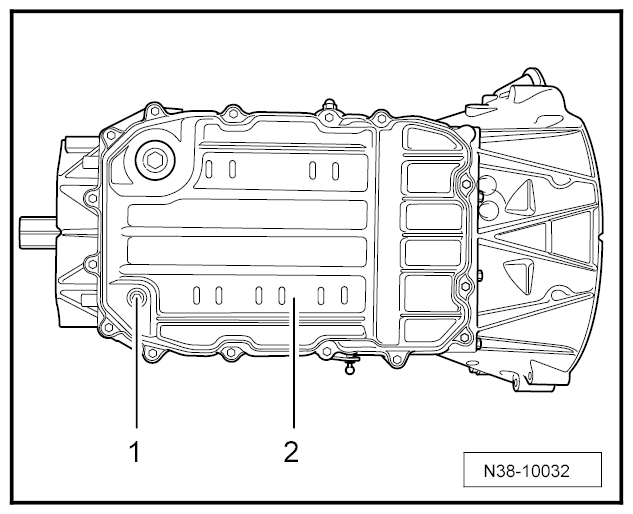

    Fig 2: Identifying Mounting Point For ATF Pan
    G09934576Courtesy of PORSCHE CARS NORTH AMERICA, INC.
