Installing ATF Pan

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Clean all magnets in the ATF pan. Make sure to stick the magnets back on fully.
Fit ATF pan with new gasket -1- . When doing this, check that all spacer sleeves -2- are inserted fully in the new gasket.

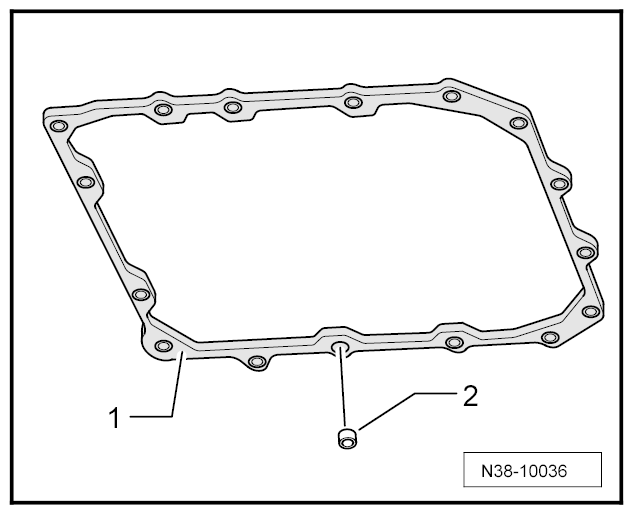

Fig 1: Identifying ATF-Pan Gasket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tighten screws on the ATF pan in several stages and in diagonally opposite sequence.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Fastening Screws On ATF Pan		Tightening Torque	8 Nm (6 ft. lb.)

Install overflow pipe -C- .

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Overflow pipe		Tightening Torque	2 Nm (1.5 ft. lb.)

Screw in oil drain plug -A- with a new sealing ring -B- .

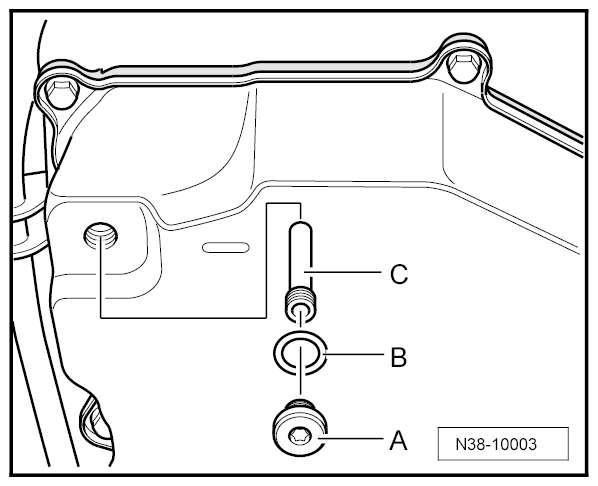

Fig 2: Identifying Overflow Pipe On ATF Pan

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Oil Drain Plug		Tightening Torque	20 Nm (15 ft. lb.)
