WM 373527 Removing And Mounting Automatic Transmission (Cayenne S, Cayenne Turbo, Cayenne GTS & Cayenne Turbo S): Tools
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Designation | Type | Number | Description | |
|---|---|---|---|---|
| Suspension Device | VW Tool | 2024 A | ||

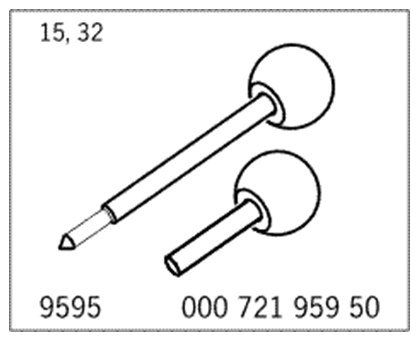

| Fixing Pins | Special Tool | 9595 | ||
| Locating Pins | Special Tool | 95950 | ||
| Insert | Special Tool | 9687 | ||
| Insert | Special Tool | 96870 | ||

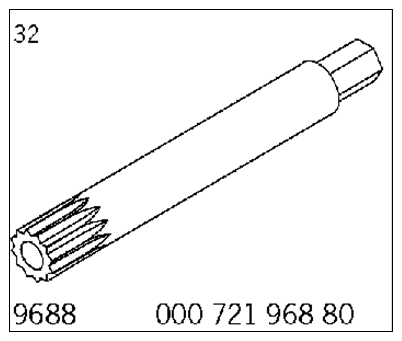

| Bit Insert | Special Tool | 9688 | ||
| Bit Insert | Special Tool | 96880 | ||
| Centering Pin | Special Tool | 9689 | ||

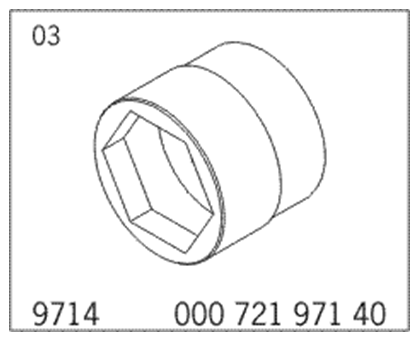

| Socket Wrench Insert | Special Tool | 9714 | ||
| Socket-Wrench Insert | Special Tool | 97140 |
