Removing Automatic Transmission

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot fluid

Danger of scalding

→ Let the fluid cool down.

→ Wear personal protective gear.

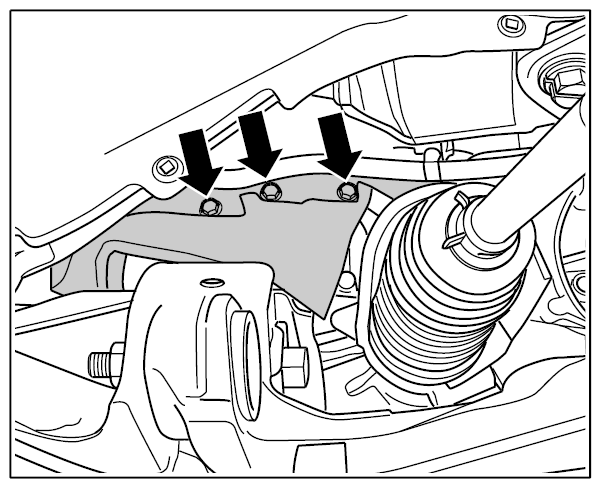

Remove heat shield from all-wheel final drive.

Fig 1: Locating Heat Shield On All-Wheel Final Drive
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

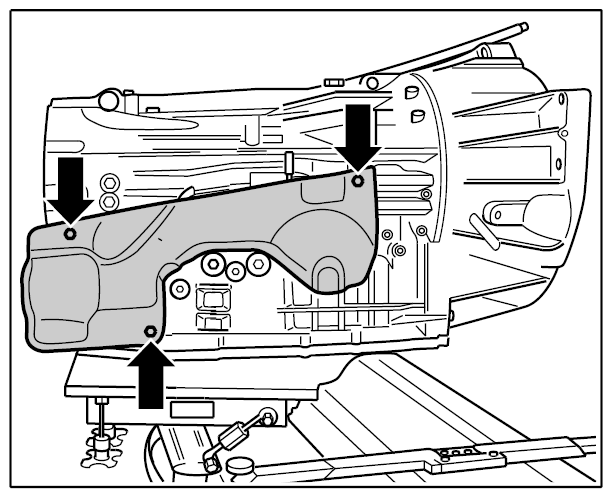

Unscrew and remove fastening screws -arrows- securing heat shield to transmission and remove heat shield.

Fig 2: Locating Right Heat Shield Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

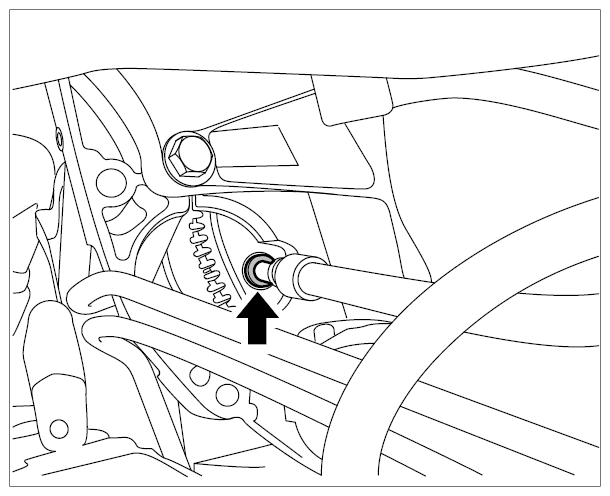

Remove converter screws -arrow- through the opening in the starter using 3/8" - 5/16" bit connecting piece and Torx T55 bit screwdriver insert Nr. 42-1 .

Fig 3: Locating Starter Opening With Converter Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Turn the crankshaft further for the next converter screw using a socket-wrench insert 9714 .

Fig 4: Turning V6 Engine
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

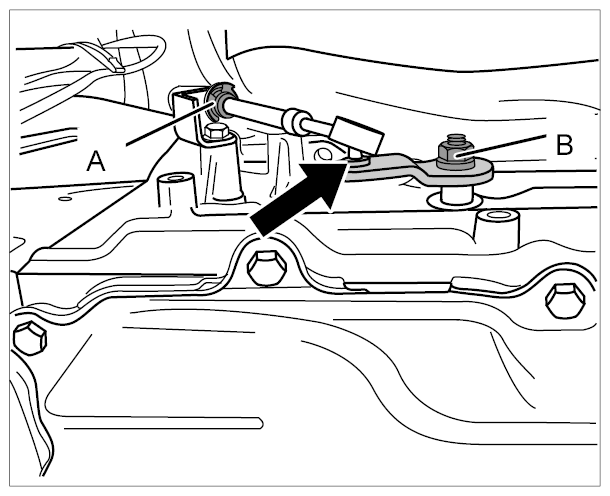

Remove safety clip -A- on the selector lever cable and use universal removal tool Nr. 21 to lever the cable off the ball joint -arrow- .

Fig 5: Locating Selector Lever Cable Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

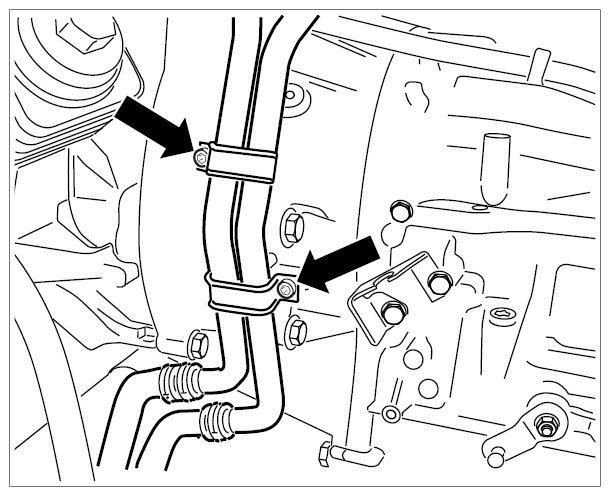

Unscrew fastening screws for coolant pipes on the converter bell housing.

Fig 6: Locating Coolant Pipes On Converter Bell Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- The line connections on the transmission and the ends of the ATF lines should be closed off after the lines have been separated from the transmission!

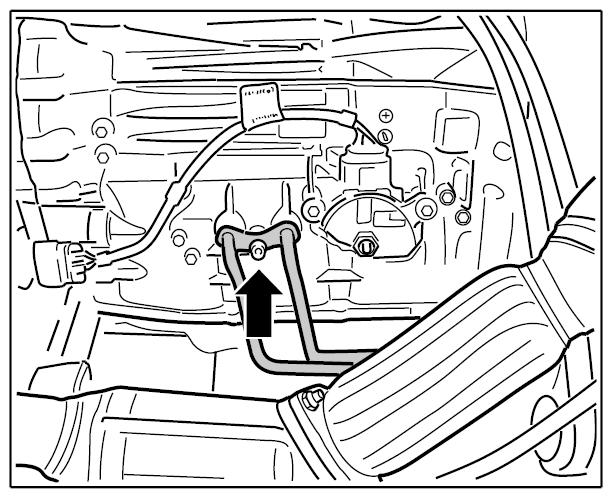

Disconnect ATF lines from the transmission. To do this, unscrew screw -arrow- and remove lines.

Fig 7: Locating ATF Line On Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove fastening screw for ATF line holder on the converter bell housing.

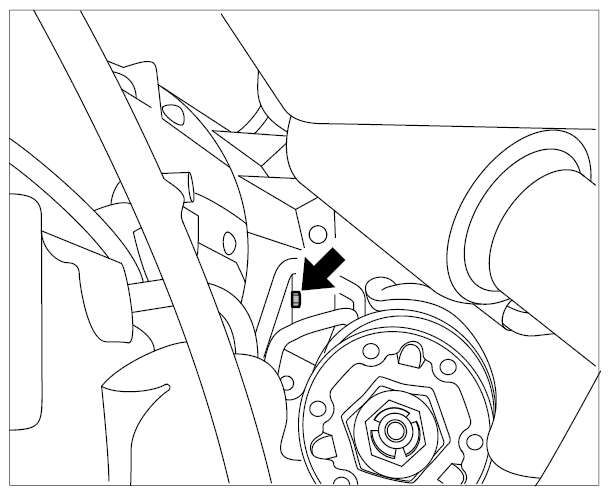

Fig 8: Locating ATF Line On Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

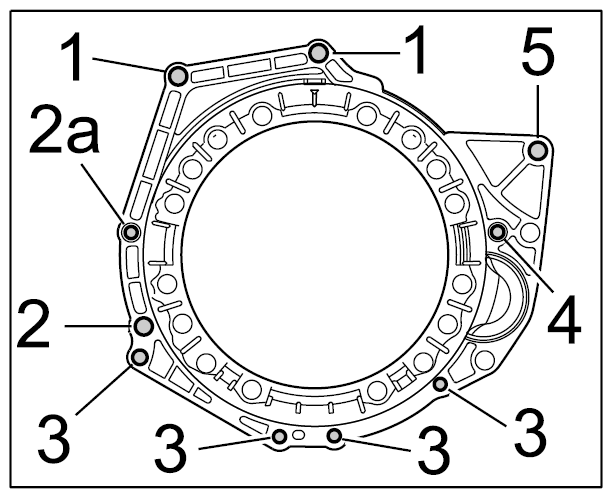

Unscrew fastening screws securing transmission to engine. To do this, unscrew four screws on the engine side and six screws on the transmission side.

Fig 9: Locating Transmission And Engine Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

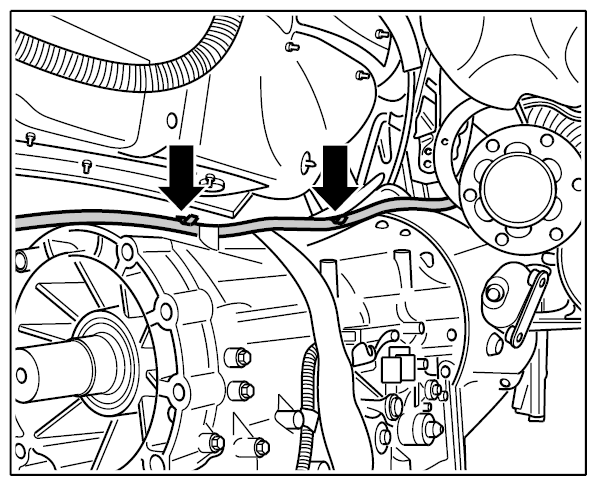

Remove transmission. Disconnect vent line -arrows- for the transfer gear while doing this.

Fig 10: Locating Vent Line On Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
