Removing Multi-Functional Switch

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

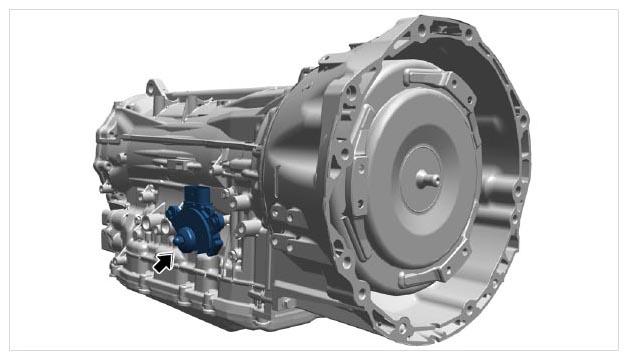

Fig 1: Locating Installation Position Of Multi-Functional Switch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew fastening screws -arrows- and remove heat shield from the transmission.

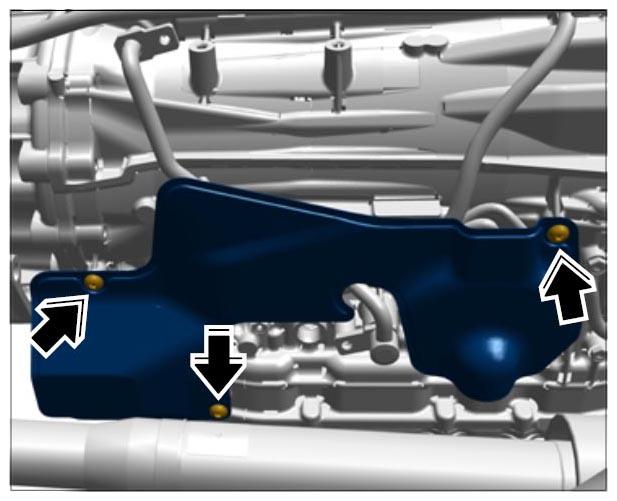

Fig 2: Locating Heat Shield Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect electric plug connection from the multi-functional switch.
Remove cap nut, cap, nut with tab washer and rubber washer → Multi-functional switch .

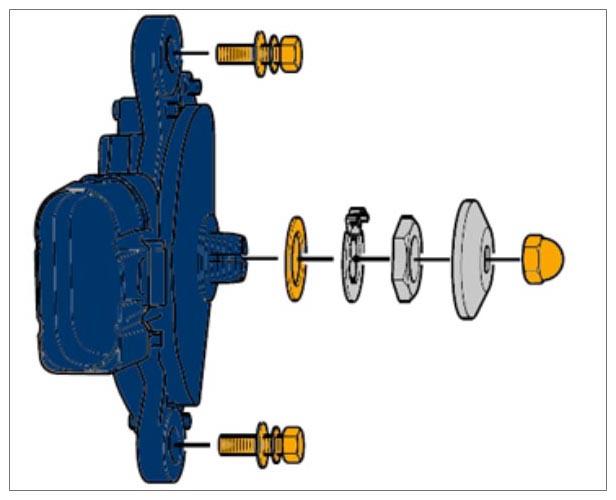

Fig 3: Identifying Multi-Functional Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -arrows- and remove multi-functional switch.

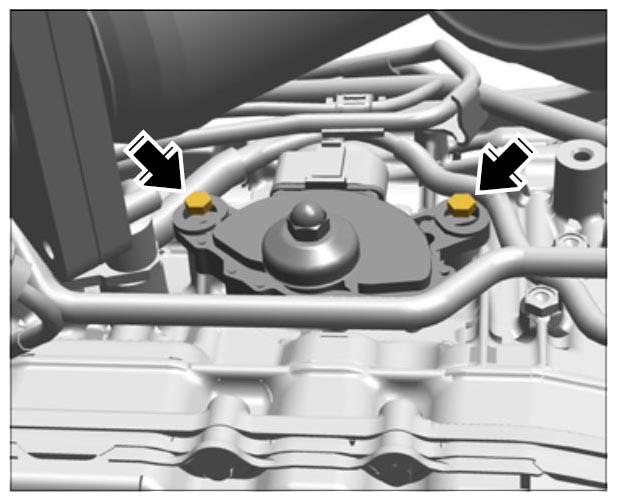

Fig 4: Fastening Screws For Multi-Functional Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
