Installing Multi-Functional Switch

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

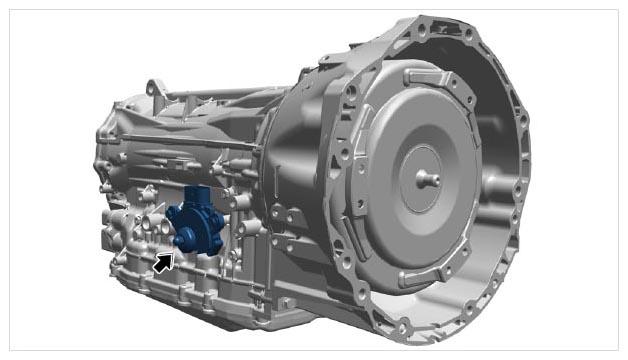

Fig 1: Locating Installation Position Of Multi-Functional Switch
G09934487Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Fit multi-functional switch on the shifting shaft.
  2. Adjust multi-functional switch. → 373115 ADJUSTING MULTI-FUNCTIONAL SWITCH
  3. Connect electric plug connection to the multi-functional switch until it engages securely.
  4. Position heat shield on the transmission.
  5. Tighten fastening screws -arrows-  . → Tightening Torque: 10 Nm (7.5 ft. lb.)

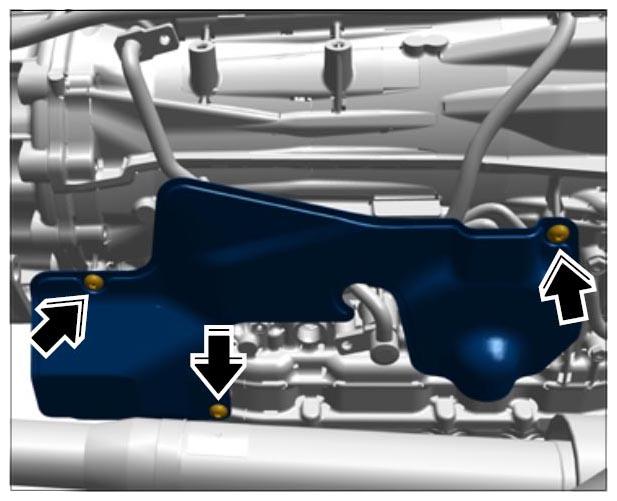

    Fig 2: Locating Heat Shield Screws
    G09934488Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Function test on gear selecting system:
    • Will the vehicle start?
    • Do all selector-lever positions work?
