Adjusting Multi-Functional Switch

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

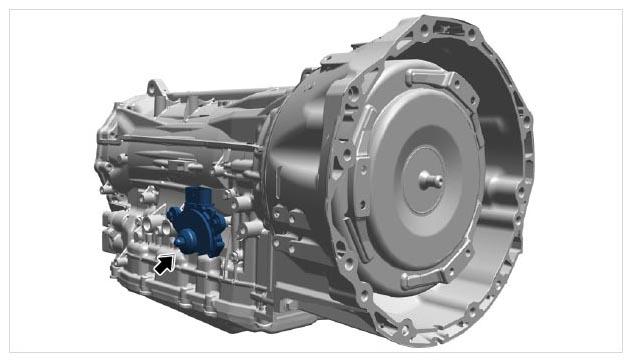

Fig 1: Locating Installation Position Of Multi-Functional Switch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Selector lever is in position N.

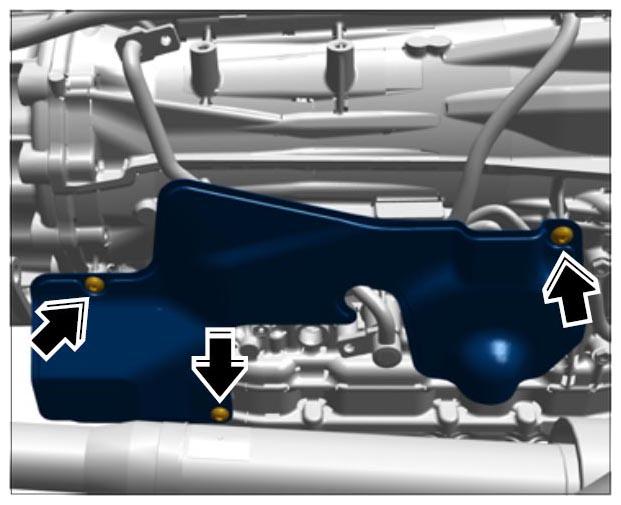

Unscrew fastening screws -arrows- and remove heat shield from the transmission.

Fig 2: Removing Heat Shield
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect electric plug connection from the multi-functional switch.

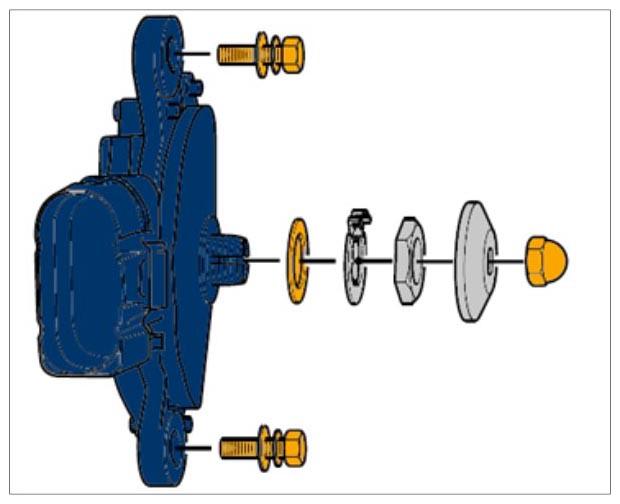

Remove cap nut, cap, nut with tab washer and rubber washer on the multi-functional switch → Multi-functional switch .

Fig 3: Identifying Multi-Functional Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

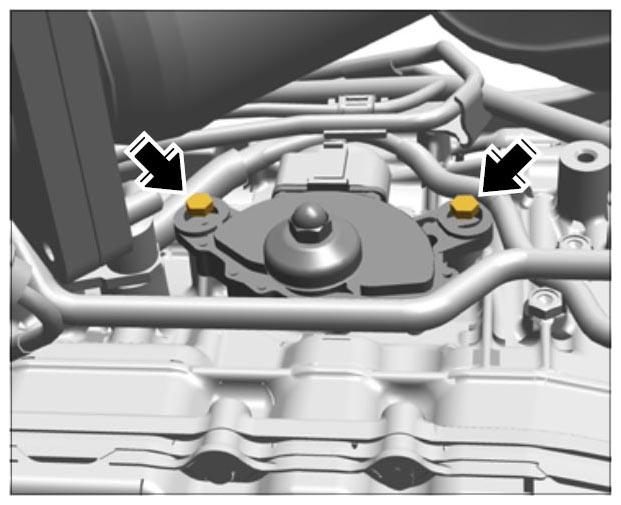

Loosen fastening screws -arrows- .

Fig 4: Locating Fastening Screws For Multi-Functional Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

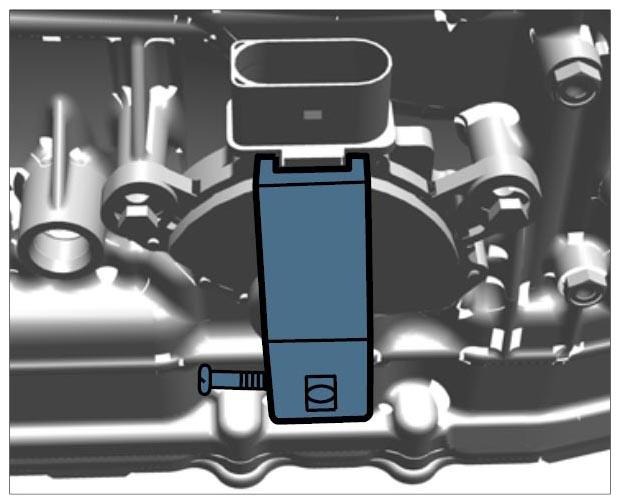

Position special tool adjusting tool T10173 on the shaft and secure to the shaft with a screw -arrow- .

Fig 5: Adjusting Tool On Multi-Functional Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening screws -arrow- and remove special tool. → Tightening Torque: 5 Nm (3.5 ft. lb.)

Fig 6: Fastening Screws For Multi-Functional Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install and tighten cap nut, cap, nut with tab washer and rubber washer on the multi-functional switch → Multi-functional switch . → Tightening Torque: 7 Nm (5 ft. lb.) → Tightening Torque: 15 Nm (11 ft. lb.)

Fig 7: Identifying Multi-Functional Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect electric plug connection to the multi-functional switch until it engages securely.
Position heat shield on the transmission.
Tighten fastening screws -arrows- . → Tightening Torque: 10 Nm (7.5 ft. lb.)

Fig 8: Locating Heat Shield Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
