Adjusting Selector Lever Cable

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Position N is marked by an arrow on the selector support.

Shift the selector lever to position N.
NOTE:
The fastening screw for the selector lever cable must not be loosened by more than one turn.
- Otherwise, the screw will fall into the selector support and the selector support will have to be replaced.
→ The fastening screw for the selector lever cable must not be loosened by more than one turn.

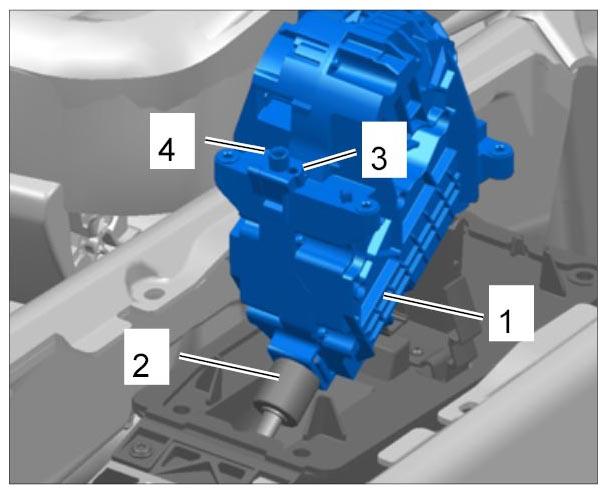

Loosen the fastening screw in opening -3- next to the emergency release -4- for connecting the selector lever cable -2- and selector support -1- by 180° using a 5-mm Allen key, approx. 15 cm long .

Fig 1: Removing Selector Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

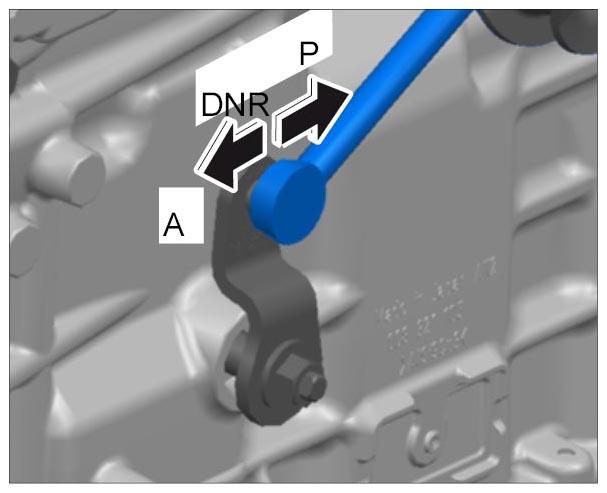

Shift the transmission to position N -A- .

Fig 2: Shifting Transmission To Position N
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten the fastening screw in the small opening -3- (using a 5- mm Allen key, approx. 15 cm long) next to the emergency release -4- for the selector cable -2- on the selector support -1- to → Tightening Torque: 10 Nm (7.5 ft. lb.) .

Fig 3: Securing Selector Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
