Removing Selector Knob

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The release button must not be pressed while removing and installing the selector knob.

Information

Do not block the release button.

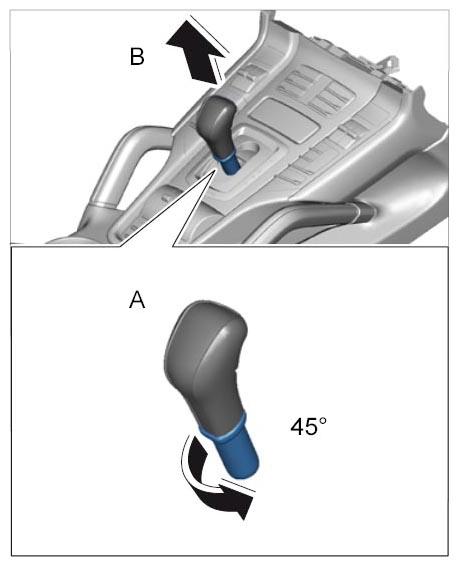

Turn locking mechanism at the bottom of the selector knob -A- by 45 degrees in direction of arrow and pull selector knob up and off -B- . The release button will pop out.

Fig 1: Removing Selector Knob
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

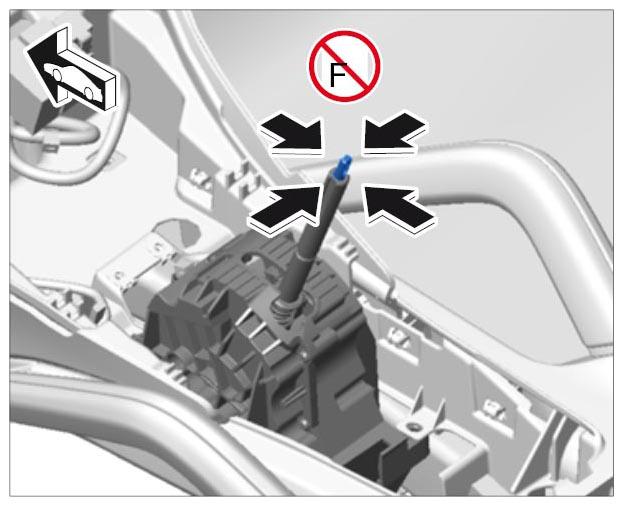

Do not apply lateral forces to the pull rod as it could break off.

Fig 2: Caution For Using Force On Pull Rod
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

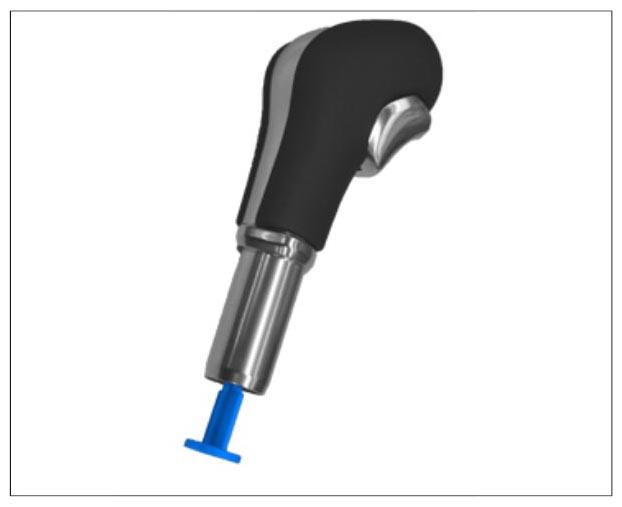

The selector knob must be secured following removal by inserting the transport lock 9839 so that the release button cannot be pressed in.

Fig 3: Identifying Selector Knob Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
