Releasing Selector Knob

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The selector knob must not be fitted when the release button is pressed in.

If the release button was pressed in, proceed as follows:

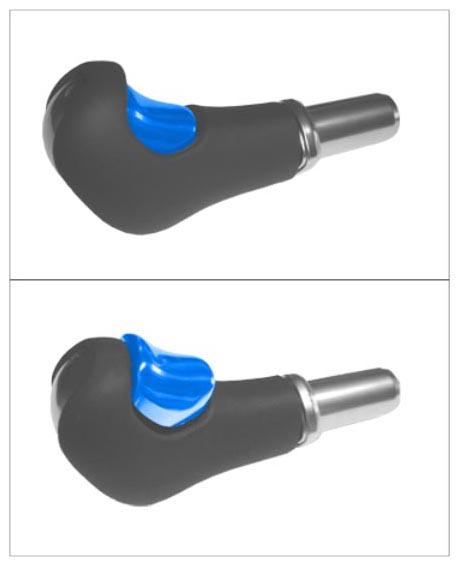

Fig 1: Identifying Release Button Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

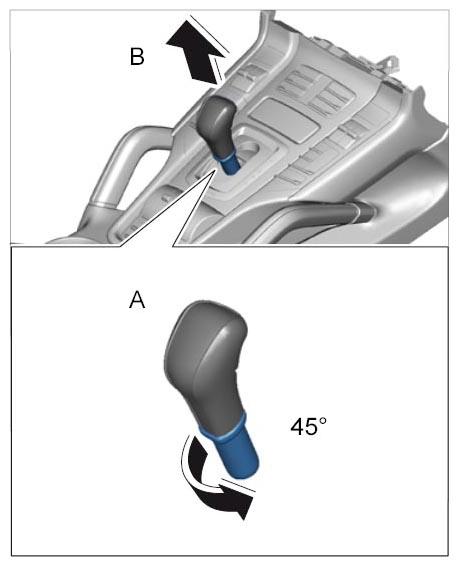

Release the selector knob. -A-

Fig 2: Removing Selector Knob
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

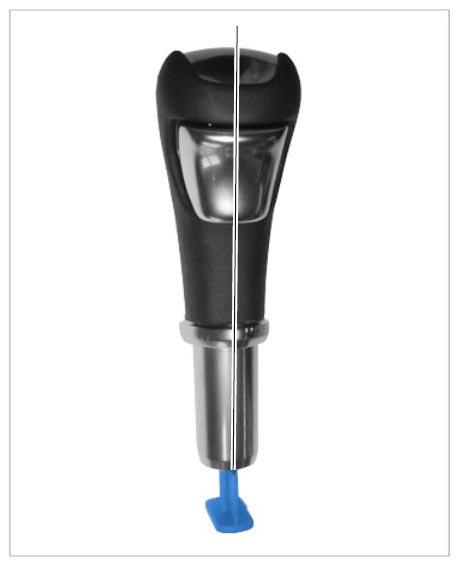

Transport lock 9839 must be inserted into the selector knob vertically with respect to the button until it locks into position.

Fig 3: Inserting Special Tool
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

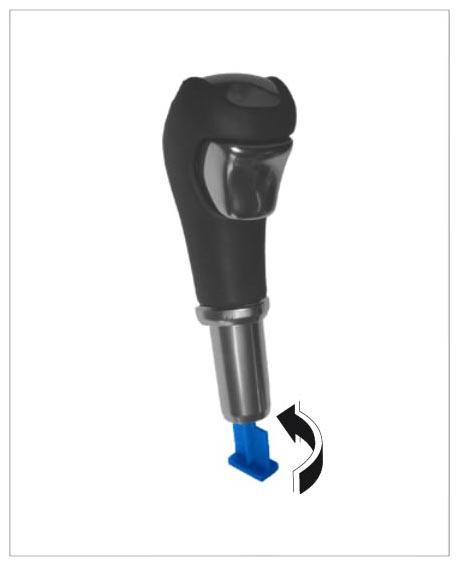

Transport lock 9839 must now be turned slightly in the knob.

Fig 4: Turning Special Tool Slightly
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Do not block the release button.

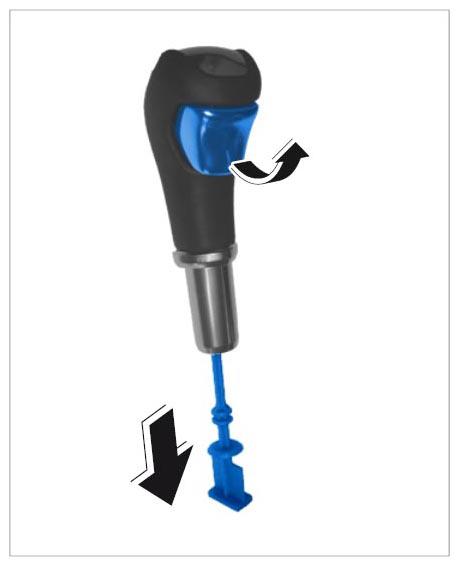

Transport lock 9839 must be removed immediately from the selector knob so that the release button pops out.

Fig 5: Removing Special Tool
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
