Removing Transmission

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

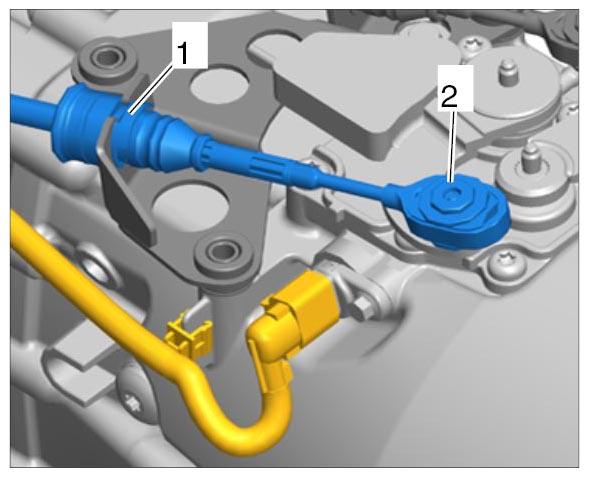

Disconnect cables on the transmission. To do this, lever off ends of cables using disassembly tool Nr.21 (-2- ) and remove the locking element -1- .

Fig 1: Locating Cable Connection On Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

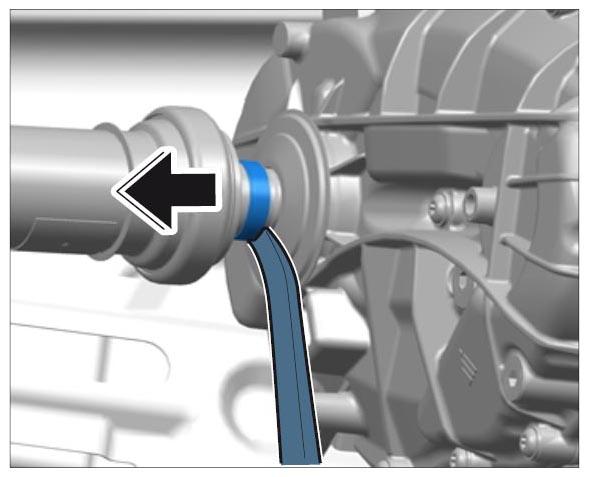

Remove rear cardan shaft on the transfer gear. To do this, press off the cardan shaft using a mounting lever.

Fig 2: Removing Cardan Shaft From Transfer Gear
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tie up the cardan shaft in the center tunnel.
Disconnect exhaust system at the transmission support -2- and cross member -1- .

Fig 3: Identifying Screw Points For Exhaust System
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

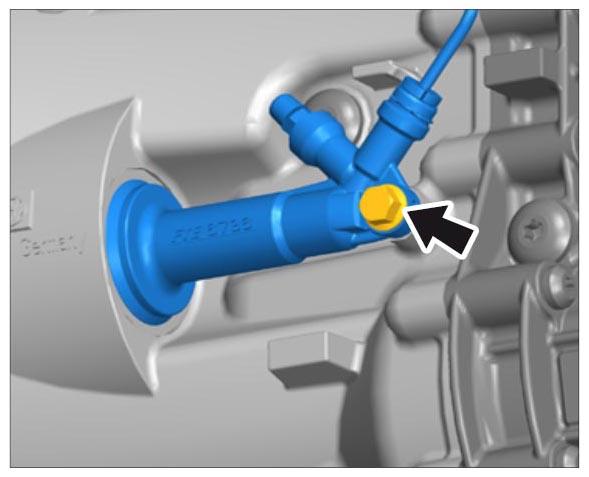

Unscrew fastening screw for clutch slave cylinder -arrow- and leave it hanging to one side.

Fig 4: Locating Clutch Slave Cylinder Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

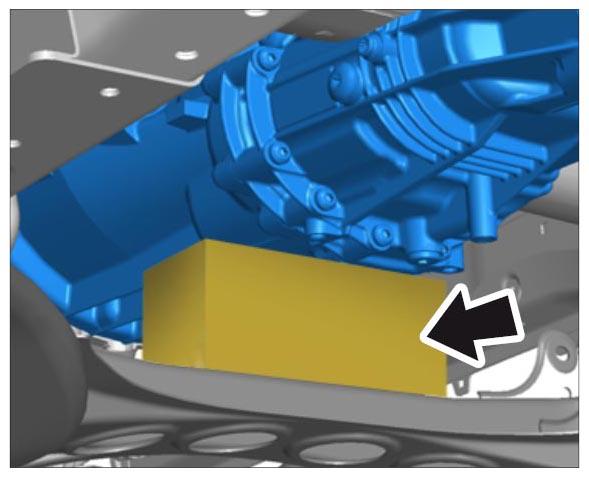

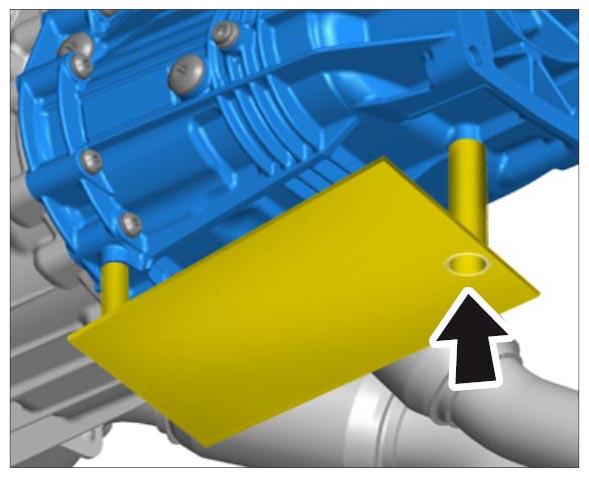

Place a suitable wooden block under the transmission bell housing.

Fig 5: Supporting Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Support the transfer gear with engine and gearbox jack V.A.G 1383 A WE 1082 .

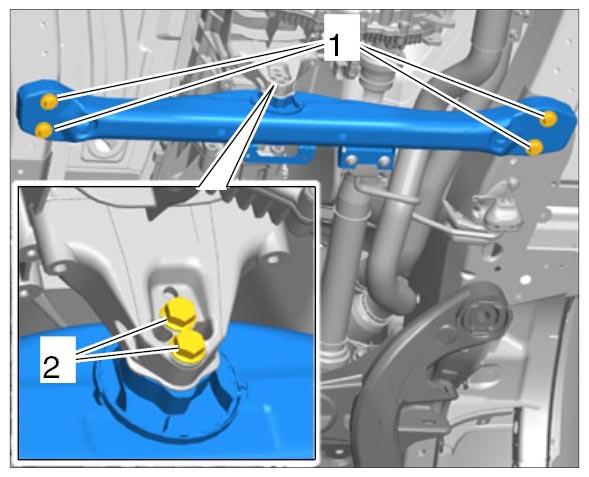

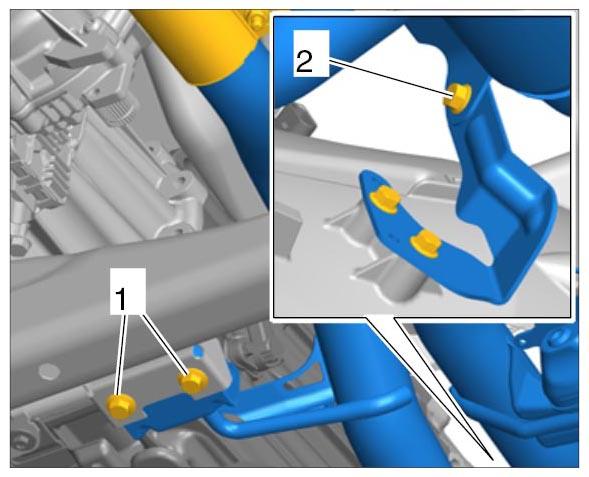

Unscrew four fastening screws for securing the transmission cross member to the body -1- .

Fig 6: Transmission Cross Member
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew two fastening screws used to secure the transmission cross member to the holder -2- and remove the cross member.

Fig 7: Identifying Transmission Cross Member
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

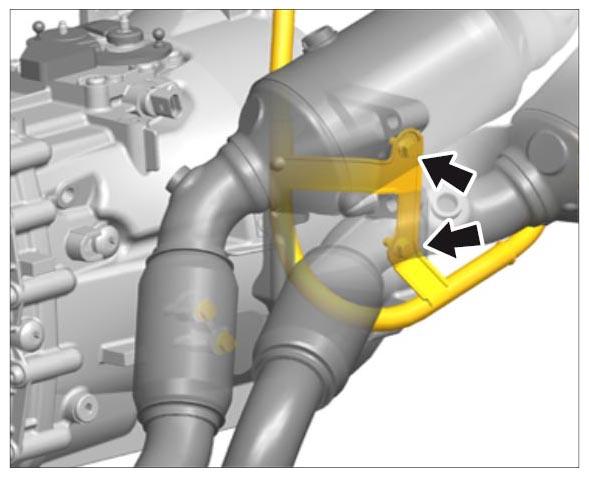

Remove exhaust system holder at the transmission bell housing -inset- .

Fig 8: Identifying Exhaust System Brackets And Fasteners
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

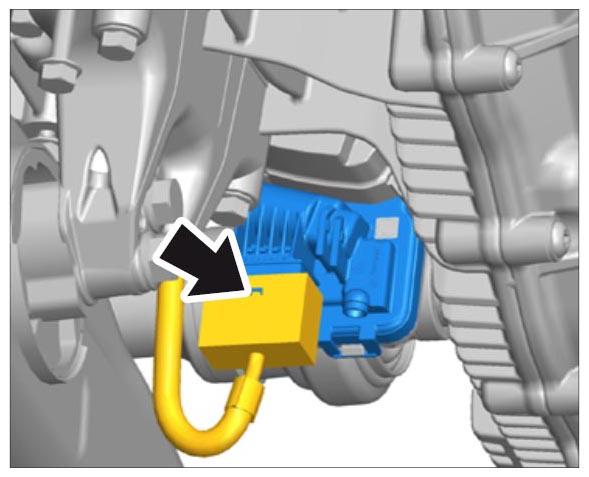

Unplug cable plug on the transfer gear control unit.

Fig 9: Locating Transfer Gear Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lower the transmission onto the wooden block.

Fig 10: Supporting Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

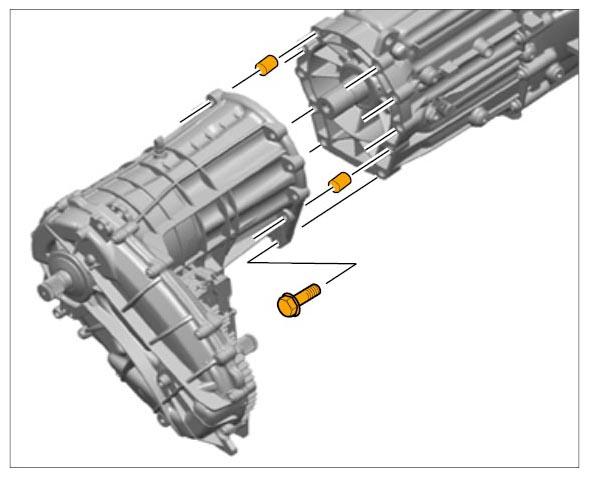

Unscrew fastening screws for transfer gear.

Fig 11: Identifying Transfer Gear Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove transfer gear.
Unplug cable plug for neutral switch at the top of the shift cover.

Fig 12: Locating Neutral Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

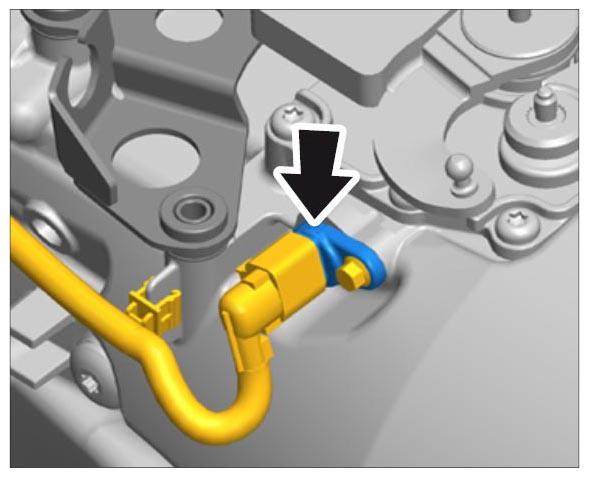

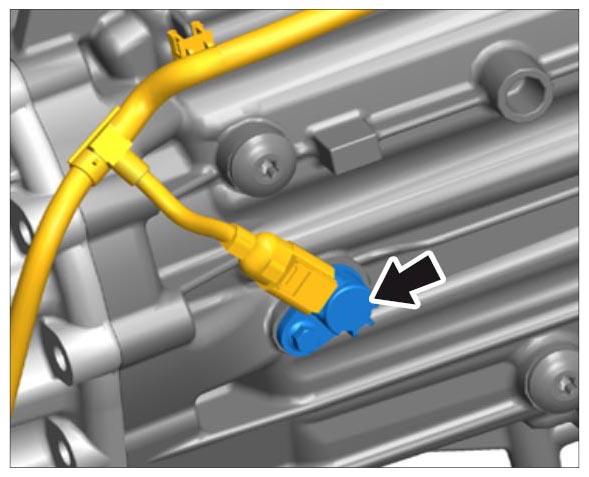

Unplug cable plug for reversing light switch.

Fig 13: Reversing Light Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

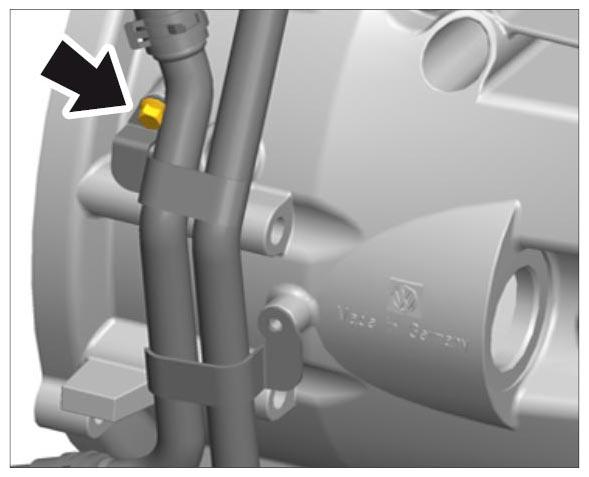

Disconnect coolant line at the side of the transmission.

Fig 14: Locating Coolant Pipe Bracket And Bolt On Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

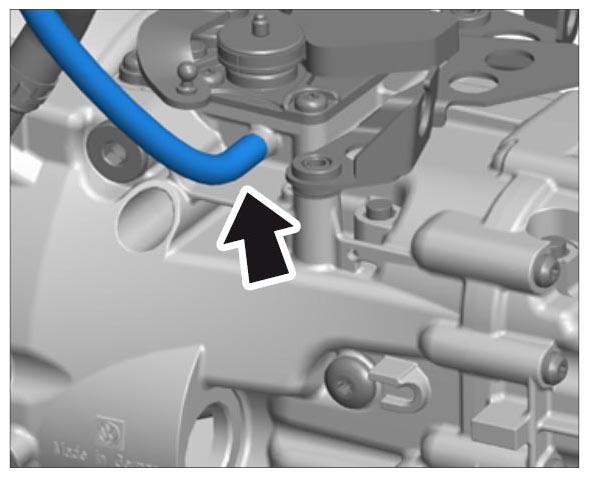

Remove transmission vent line at the top of the transmission.

Fig 15: Locating Transmission Vent Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Detach line bracket for B+ line.

Fig 16: Locating Holder For B+ Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the starter. → 276019 REMOVING AND INSTALLING STARTER
Mounting plate 9725 must be secured to the manual transmission.

Fig 17: Mounting Plate On Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

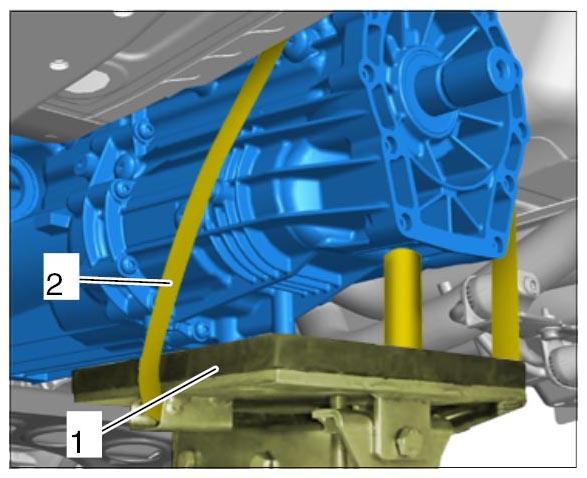

Support the transmission with engine and gearbox jack V.A.G 1383 A WE 1082 -1- and secure with a retaining strap -2- .

Fig 18: Supporting Transmission And Engine With Gearbox Jack
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws for securing transmission to engine. To do this, unscrew four screws on the engine side and seven screws on the transmission side.

Fig 19: Identifying Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove transmission.
