Removing Shift-Lever Knob

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Put shift-lever knob in neutral position.
  2. Pull up the leather boot. To do this, release it at several places using a plastic wedge.
  3. Unlock the shift-lever knob. To do this, turn the grooved end piece on the gearshift lever anti-clockwise by a quarter of a turn until it engages.

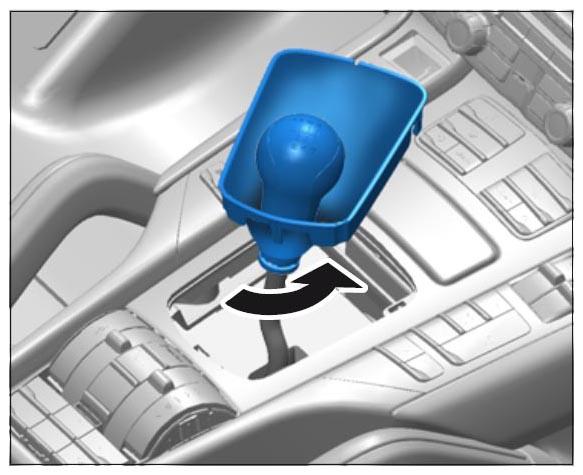

    Fig 1: Unlocking Shift-Lever Knob
    G09934344Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • Do not pull shift-lever knob off by pulling on the leather boot  .
  4. Grasp the shift-lever knob at the top end and pull it off.

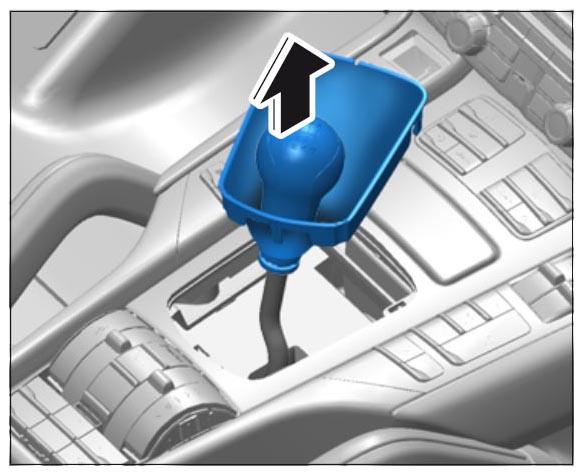

    Fig 2: Removing Shift-Lever Knob
    G09934345Courtesy of PORSCHE CARS NORTH AMERICA, INC.
