Installing Shift-Lever Knob

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert the shift-lever knob from above until it engages.
  2. Lock the shift-lever knob. To do this, turn the grooved end piece on the gearshift lever clockwise by a quarter of a turn until it engages.

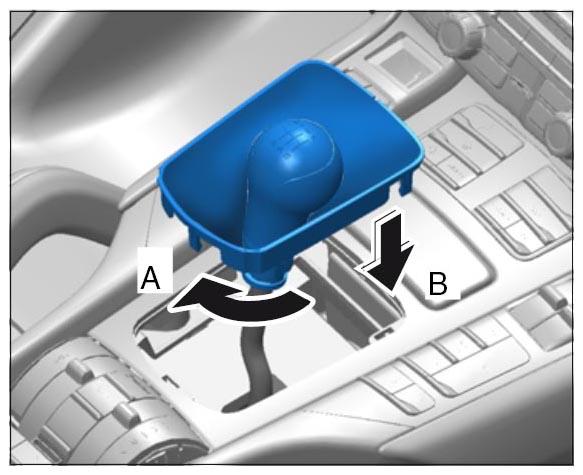

    Fig 1: Locking Shift-Lever Knob
    G09934346Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Fit leather boot into center console cover from above.
