Changing Transmission Oil

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Place oil collecting container underneath the vehicle.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.

Information
- Secure vehicle to prevent it rolling away .
- Vehicle must be horizontal in order to change transmission oil .
Unscrew oil drain plug -arrow- and drain transmission oil.

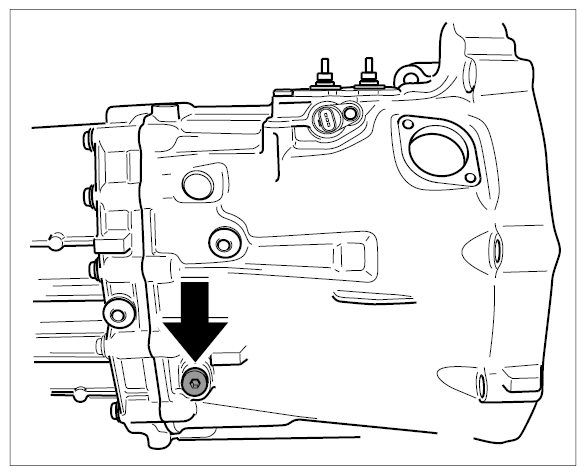

Fig 1: Locating Oil Drain Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in oil drain plug -arrow- with a new sealing ring. → Tightening torque: 35 Nm (26 ftlb.)
Unscrew oil inspection plug -arrow- .

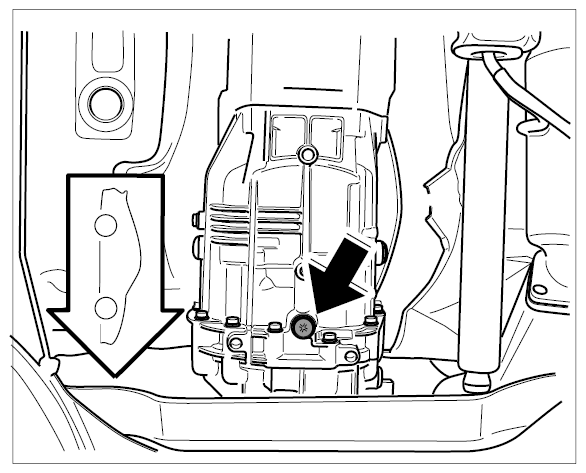

Fig 2: Locating Oil Inspection Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Use only oil approved by Porsche.
Use manual metering pump WE 1372 to fill in oil up to the lower edge of the inspection opening -arrow- . → Change quantity: 1.8 liters
Screw in oil inspection plug -arrow- with a new sealing ring. → Tightening torque: 35 Nm (26 ftlb.)
