Checking Transmission Oil

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot fluid

Danger of scalding

→ Let the fluid cool down.

→ Wear personal protective gear.

Information

Secure vehicle to prevent it rolling away .
To check transmission oil the vehicle must be horizontal .

Unscrew oil inspection plug -arrow- .

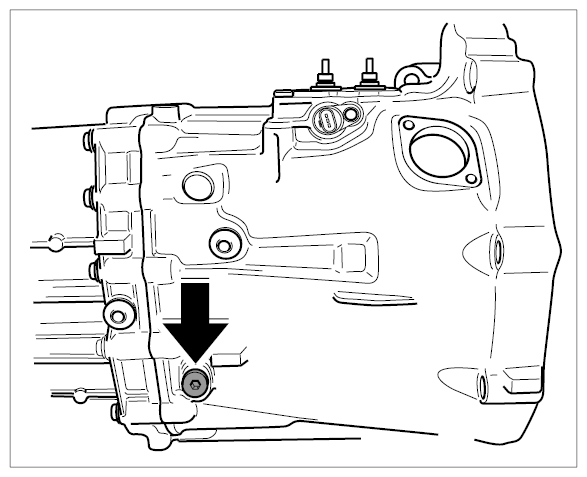

Fig 1: Locating Oil Inspection Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
The oil level is correct if the oil reaches the lower edge of the inspection window.
If this is not the case, add more transmission oil. → 340135 CHECKING AND TOPPING UP TRANSMISSION OIL
Screw in oil inspection plug -arrow- with a new sealing ring. → Tightening torque: 35 Nm (26 ftlb.)

Fig 2: Locating Oil Inspection Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
