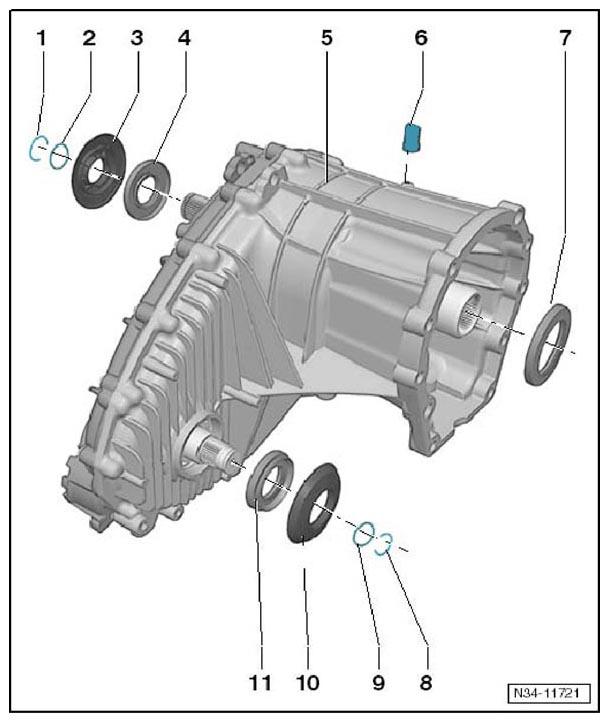

Component Overview - Sealing Rings On Transfer Gear
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Circlip, Always Replace
- O-Ring, Always Replace
- Dust Boot, Always Replace
- Sealing Ring, Rear Output Shaft → 399255 REPLACING SEALING RING FOR TRANSFER GEAR (REAR OUTPUT SHAFT)
- Transfer Gear
- Ventilation Cap
- Sealing Ring, Inner Drive → 399255 REMOVING AND INSTALLING SEALING RING FOR TRANSFER GEAR (INNER DRIVE)
- Circlip, Always Replace
- O-Ring, Always Replace
- Dust Boot, Always Replace
- Sealing Ring, Front Output Shaft → 399255 REMOVING AND INSTALLING SEALING RING FOR TRANSFER GEAR (FRONT OUTPUT SHAFT)
