Installing Sealing Ring For Transfer Gear

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Lightly oil the outer circumference of the new shaft sealing ring.
Half-fill the space between the sealing and dust lips with sealing grease.

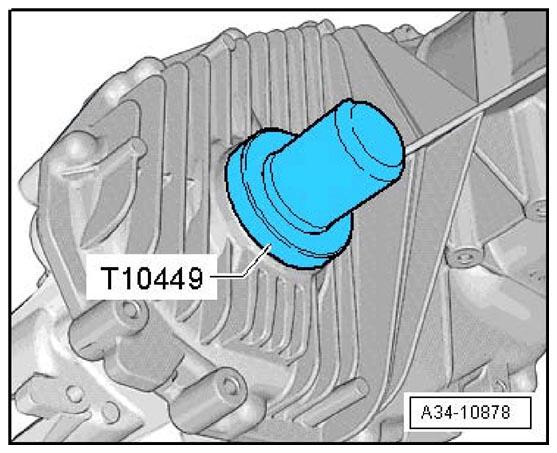

Tap the sealing ring in as far as it will go using Thrust Piece T10449 . Do not bend the sealing ring. → Installing sealing ring

Fig 1: Installing Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

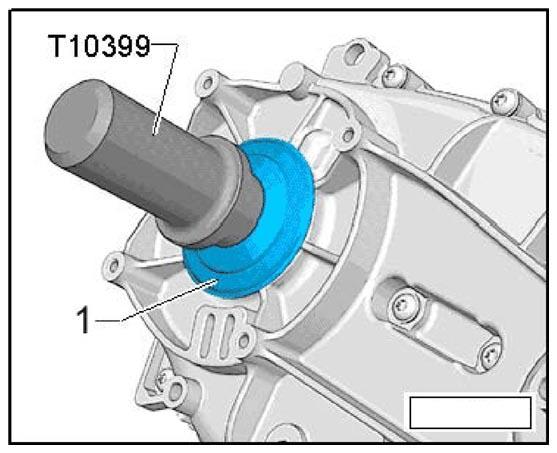

Tap new dust boot -1- in until it locks onto the shaft using Assembly Tool T10399 .

Fig 2: Fitting Dust Boot
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

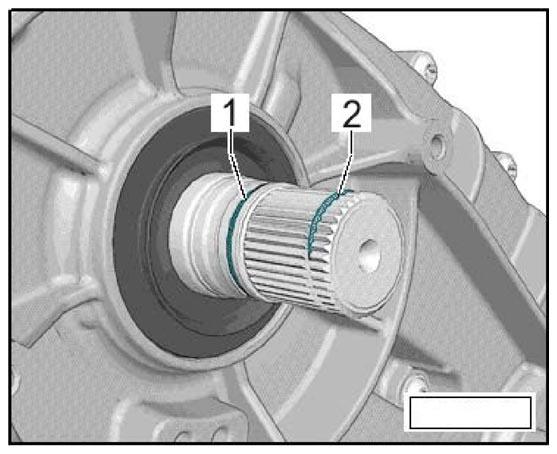

Replace O-ring -1- and circlip -2- .
