Removing Sealing Ring For Transfer Gear

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pierce a hole in the center of the sealing ring using a mandrel.
  2. Screw in tapping screw -arrow-  with a diameter of 4 mm.
  3. Pull out sealing ring using Puller T10055  . → Sealing ring, inner drive

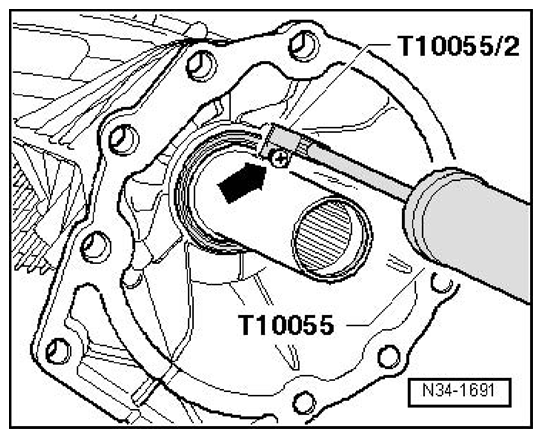

    Fig 1: Removing Sealing Ring (Inner Drive)
    G09934932Courtesy of PORSCHE CARS NORTH AMERICA, INC.
