Oil Adjustment Specifications For Front-Axle Final Drive And Rear Axle Differential

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Model	Transmission	I-no.	First Fill	Change Quantity	Fill Measurement Under Lower Edge Of Filler Screw
Front-Axle Final Drive
Cayenne S [D6V -E0A] Cayenne [D34]	FA final drive 165 SAF PD oil		0, 6 liter	0.5 litres	→ Fill quantity: 7 mm+/-2 mm
Cayenne GTS [D6V +E0W] Cayenne Turbo [D58] Cayenne Diesel [D1V/D50/D43] Cayenne S Diesel [DD8] Cayenne Hybrid [D19] Cayenne China [D11]	FA final drive 175 SAF PD oil		0, 6 liter	0.5 litres	→ Fill quantity: 5 mm+/-2 mm
Rear Axle Differential
Cayenne Diesel [D1V/D50/D43] Cayenne Hybrid [D19] Cayenne China [D11]	Rear axle diff. 195 open SAF PD oil	1Y0	0, 9 liter	0.8 litres	→ Fill quantity: 3 mm+/-2 mm
Cayenne S [D6V -E0A] Cayenne GTS [D6V +E0W] Cayenne Turbo [D58]	Rear axle diff. 210/220 open SAF PD oil	1Y0	1.1 litres	1.0 litres	→ Fill quantity: 6 mm+/-2 mm
Cayenne [D34] Cayenne S [D6V -E0A] Cayenne GTS [D6V +E0W] Cayenne Turbo [D58] Cayenne S Diesel [DD8]	Rear axle diff. 210/220 EM SAF carbon mod. oil	1Y1	1, 4 liter	1, 3 liter	Lower edge of filler screw
EM: Electromechanical rear-diff. lock/1Y0 without rear-diff. lock/1Y1 with rear-diff. lock

Information

Use only oil approved by Porsche .

Place oil collecting container underneath the vehicle.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.
Unscrew oil drain plug -B- and drain the oil.

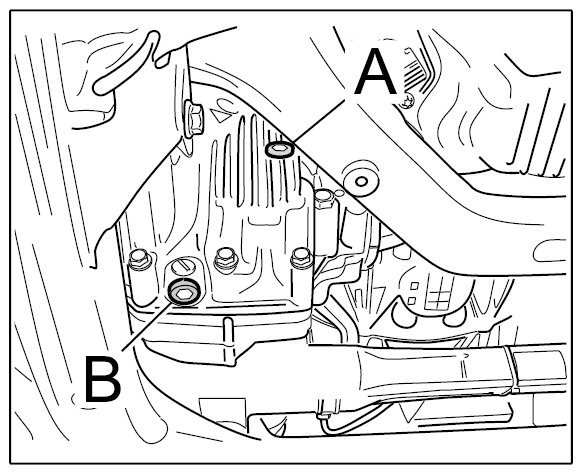

Fig 1: Identifying Oil Inspection And Drain Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in oil drain plug -B- with a new sealing ring. → Tightening torque: 35 Nm (26 ft. lb.)
Unscrew oil inspection plug using the Special Inserts Model AB 170 tool.

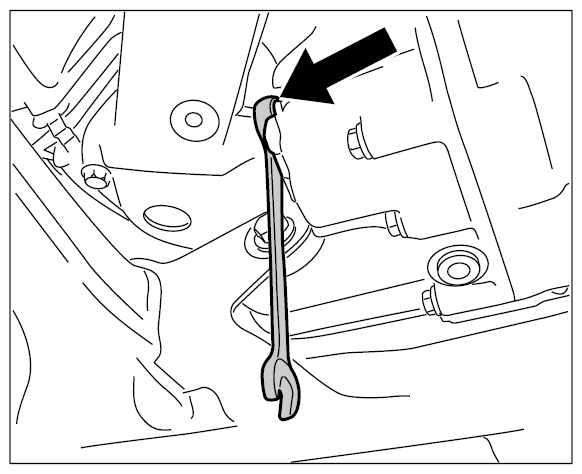

Fig 2: Locating Tool For Oil Inspection Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Use Manual Metering Pump WE 1372 to fill oil into the inspection plug opening -A- .
1. 5.1. The oil fill quantity is specified in the table Oil Adjustment Specifications For Front-Axle Final Drive And Rear Axle Differential .
2. 5.2. The oil level in the final drive can be measured using an angled piece of wire, for example.

  Fig 3: Identifying Oil Inspection And Drain Plug
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in oil inspection plug -A- using Special Inserts Model AB 170 Accessory For Torque Wrench: Open Ring Wrench Insert a/f 13 With Adapter 98-1 and a new sealing ring. → Tightening torque: 35 Nm (26 ft. lb.)

Fig 4: Identifying Oil Inspection And Drain Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
