Topping Up Oil For Transfer Gear
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.
Information
- The vehicle must stand horizontally!

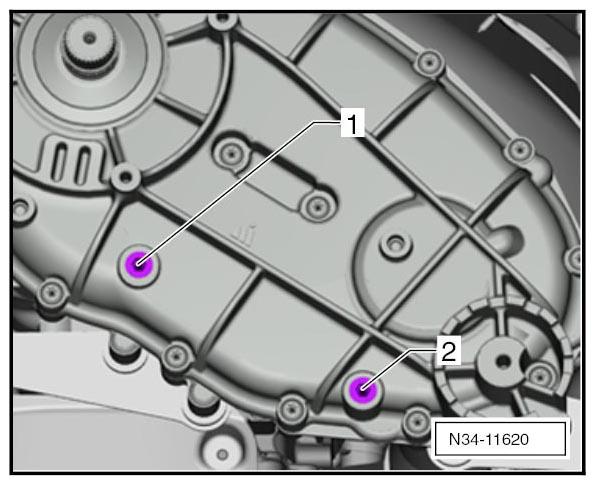

- Unscrew oil inspection plug -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Information
Use only oil approved by Porsche.
- Fill in oil using Manual Metering Pump WE 1372 up to the lower edge of the oil inspection plug -1- .
- Screw in new
oil inspection plug -1-
.
→ Tightening torque: 17 Nm (13 ft. lb.)
