Checking Oil For All-Wheel Final Drive

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot fluid

Danger of scalding

→ Let the fluid cool down.

→ Wear personal protective gear.

Information

Vehicle must be horizontal to check oil level in all-wheel final drive .

Unscrew oil inspection plug -A- using tool Special Inserts Model AB 170 .

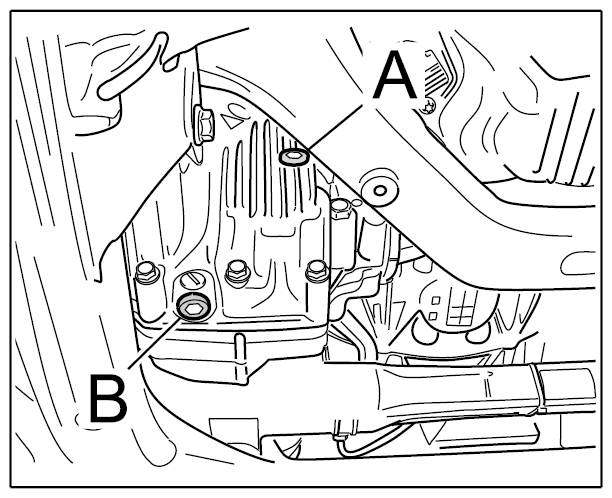

Fig 1: Identifying Oil Inspection Plug/Filler Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
The oil level is correct if the oil reaches the lower edge of the inspection window.
If this is not the case, top up the oil. → TOPPING UP OIL FOR ALL-WHEEL FINAL DRIVE - section on "Topping up"

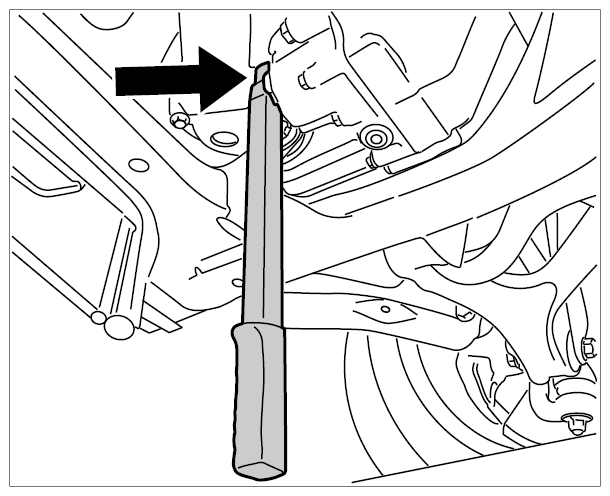

Screw in oil inspection plug -A- with a new sealing ring. To do this, use special tool Special Inserts Model AB 170 and Accessory For Torque Wrench: Open Ring Wrench Insert, a/f 13 + Adapter 98-1 . → Tightening torque: 35 Nm (26 ft. lb.)

Fig 2: Tightening To Specified Torque
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
