Removing All-Wheel Final Drive

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

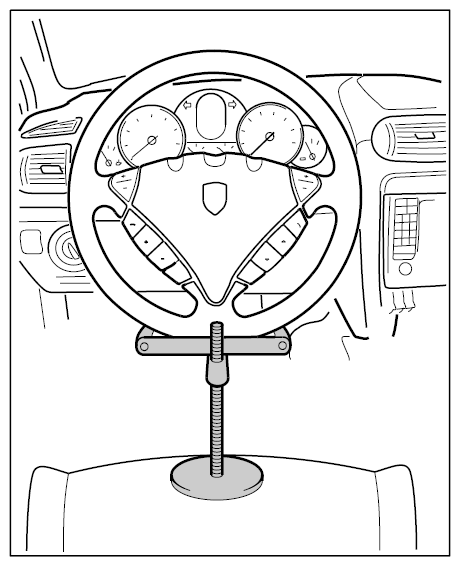

Clamp steering wheel in center position with steering wheel holder -figure- .

Fig 1: Identifying Steering Wheel Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

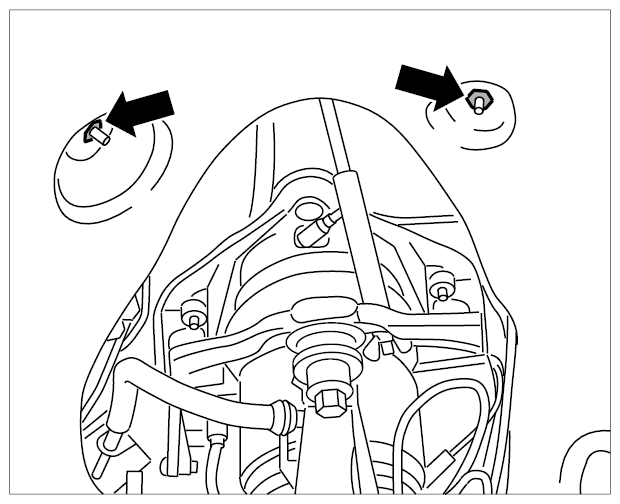

Unscrew plastic nuts -arrows- on front right wheel housing liner.

Fig 2: Locating Wheel Housing Liner Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

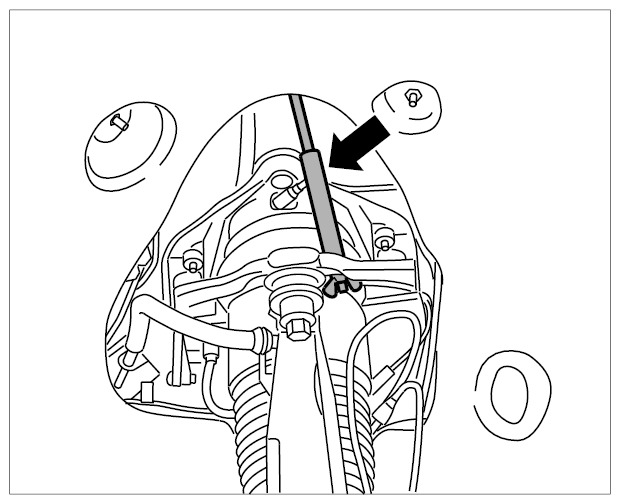

Engage special tool Spring Compressor VW 552 in top of wheel housing, behind wheel housing liner, and support the spring strut.

Fig 3: Locating Installation Position Of Spring Compressor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

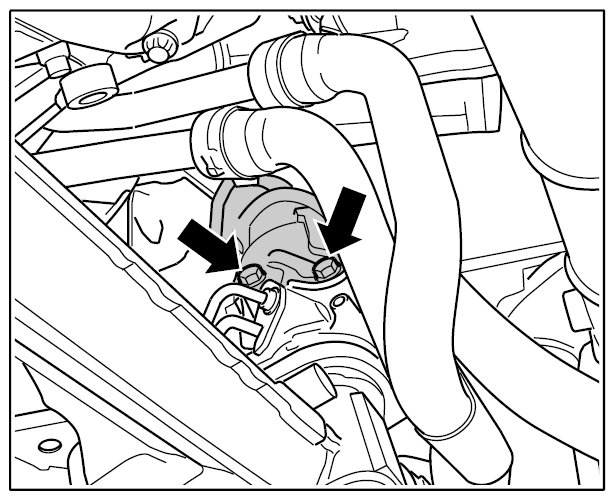

Remove cover plate on the steering -arrows- .

Fig 4: Locating Cover Plate On Steering
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull Servotronic plug off the steering gear.

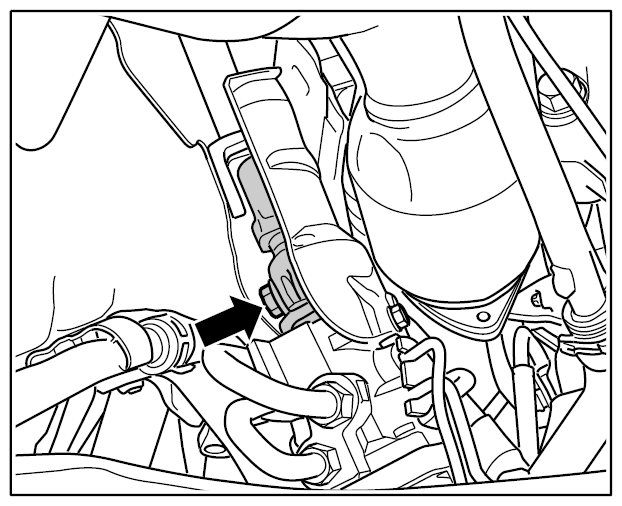

Unscrew bolted connection -arrow- securing universal joint to steering gear. Remove universal joint from steering gear.

Fig 5: Locating Universal Joint Bolt
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove left and right drive shafts from the all-wheel final drive using Multiple-Tooth Socket-Wrench Insert M12 Nr. 31 .

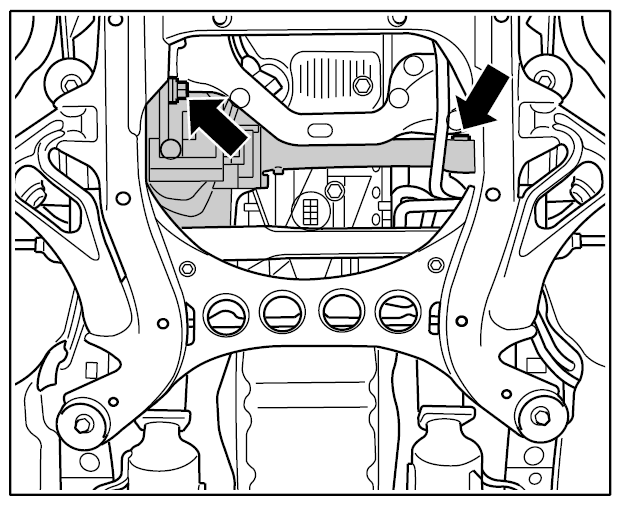

Remove cover plate on front final drive by loosening three fastening screws and removing the plate.
Information
- Fastening screw -left arrow- at front right cannot be removed until the front-axle carrier is lowered .

  Fig 6: Locating Final Drive Bolts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws for all-wheel final drive and screw for drive flange.

Fig 7: Locating Final Drive Bolts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Supports 1, 4 and 7 must be fitted to the unit lifting platform .
Raise unit lifting platform until it is touching the front-axle carrier.

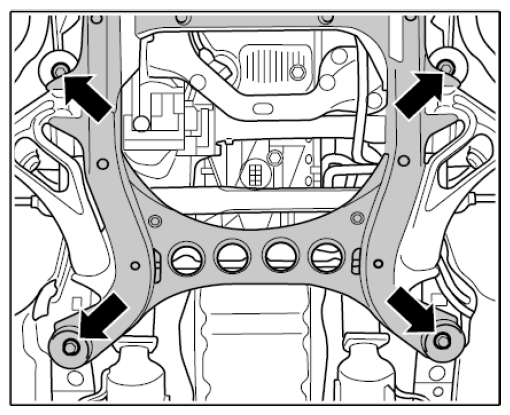

Unscrew bolts -arrows- on front-axle carrier.

Fig 8: Locating Bolts On Front-Axle Carrier
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

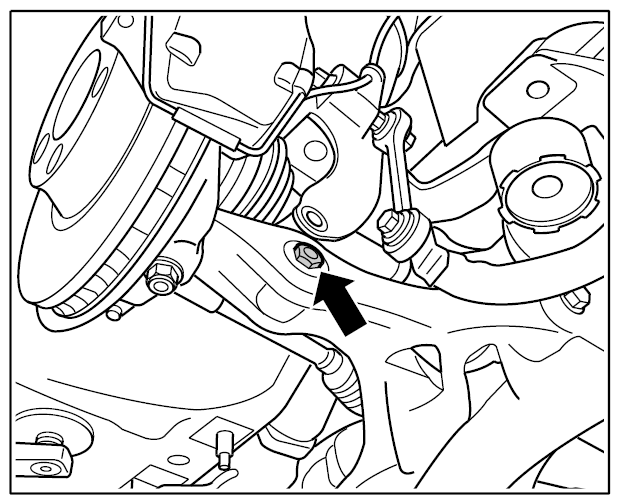

Undo bolt connecting spring strut to trailing arm -arrow- .

Fig 9: Locating Spring Strut To Trailing Arm Connecting Bolt
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

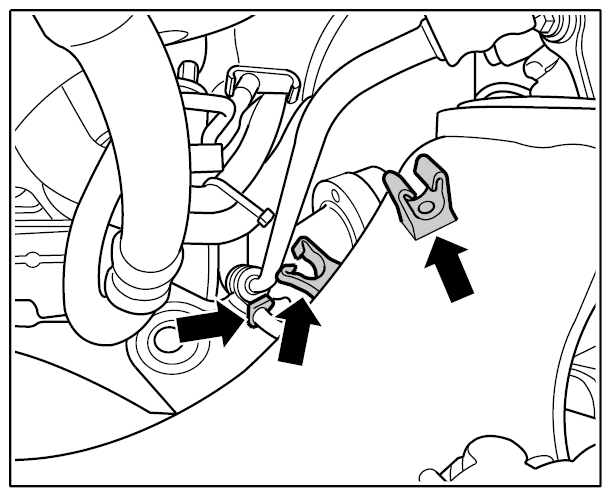

Disengage servo line from the front-axle carrier at the three holders -arrows- .

Fig 10: Locating Servo Line Holders
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE:
Chassis subframe lowered too far
- Over-extension of joints on the chassis
→ Only lower the chassis subframe sufficiently to allow the transmission to be removed.
Lower the front-axle carrier with the unit lifting platform. Remove the vent line from the final drive at the same time.
CAUTION: Risk of damage to ATF lines and pressure line for power steering.

→ Protect ATF lines with water hose or similar.

→ The servo line must not be crushed or stretched.

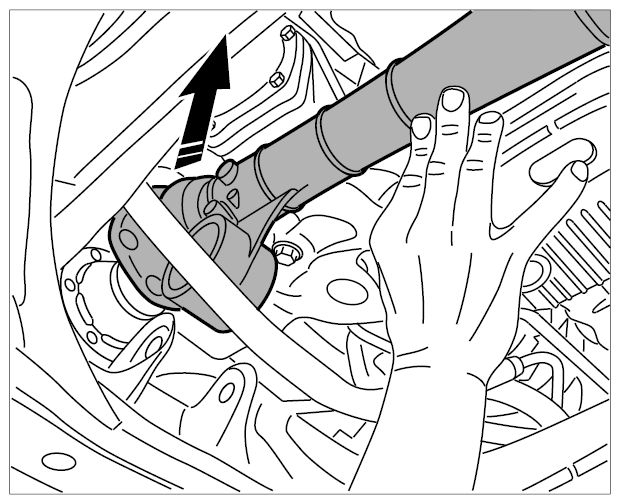

Press left drive shaft out of the flange on the final drive.

Fig 11: Pressing Out Drive Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

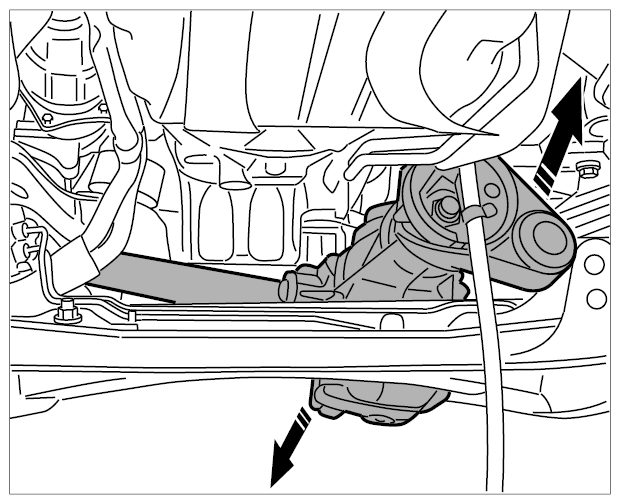

Lift transmission and press to the left.
Tilt forward the transmission housing together with drive flange.

Fig 12: Tilting All-Wheel Final Drive
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

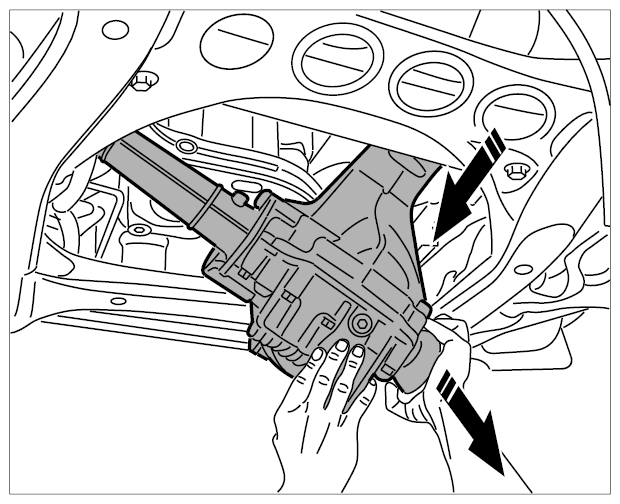

Remove all-wheel final drive downwards through the front-axle carrier.

Fig 13: Removing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
