Installing All-Wheel Final Drive

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The front right fastening screw for the four-wheel final drive -left arrow- can only be screwed in with the front-axle carrier lowered .

Fig 1: Identifying All-Wheel Final Drive Bolts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

CAUTION: Risk of damage to ATF lines and pressure line for power steering.

→ Protect ATF lines with water hose or similar.

→ The servo line must not be crushed or stretched.

Information

A second fitter is required for removing/installing the four-wheel final drive .

Swivel left flange of final drive in over the front-axle carrier.
Rotate drive flange upwards and install final drive through the front-axle carrier.

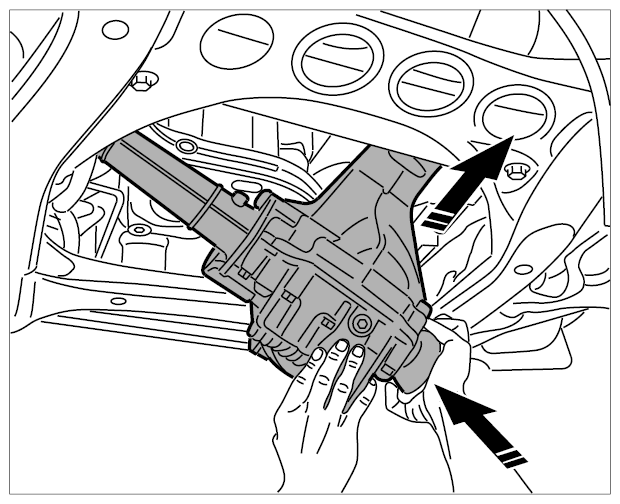

Fig 2: Installing All-Wheel Final Drive
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

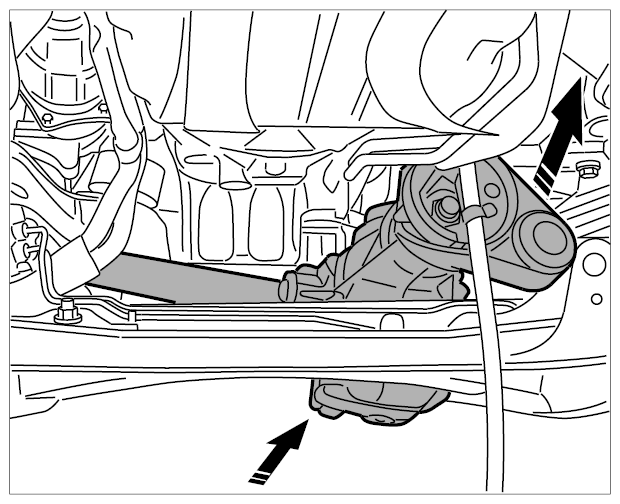

Insert right drive shaft into output flange and place final drive into the mounts on the front-axle carrier.

Fig 3: Tilting All-Wheel Final Drive
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

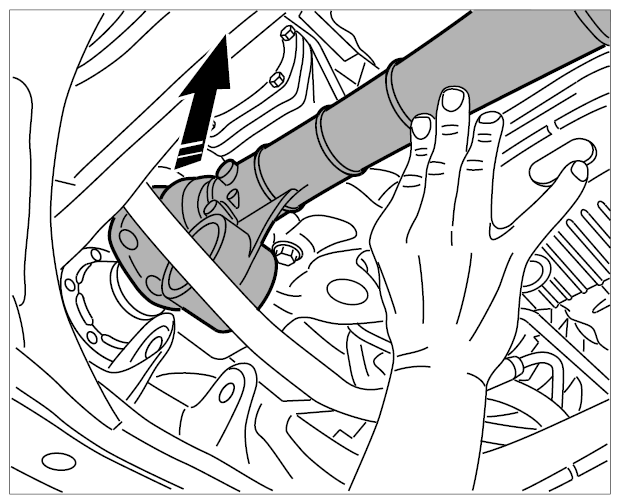

Fit left drive shaft by lifting the final drive output flange.

Fig 4: Fitting Left Drive Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

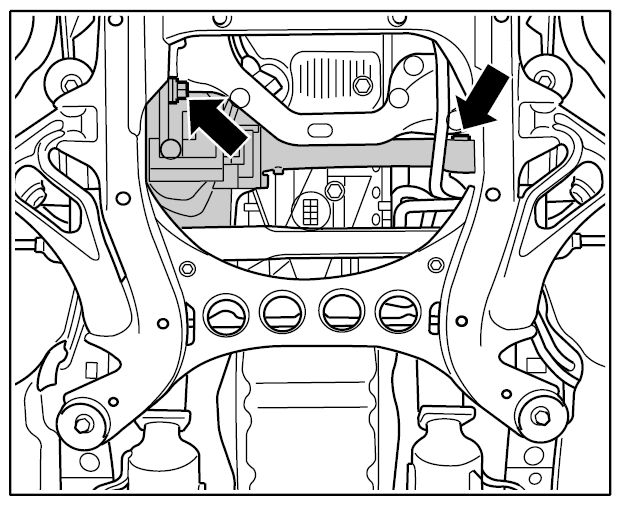

Fit fastening screws -arrows- for all-wheel final drive and screw for drive flange.

Fig 5: Identifying All-Wheel Final Drive Bolts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Raise front-axle carrier with unit lifting platform until it is touching the body. Position vent line at the same time.
Information
- For details of tightening torques for running gear parts, see Group 4 (Running gear) → WM 4X00IN TIGHTENING TORQUES FOR FRONT AXLE .

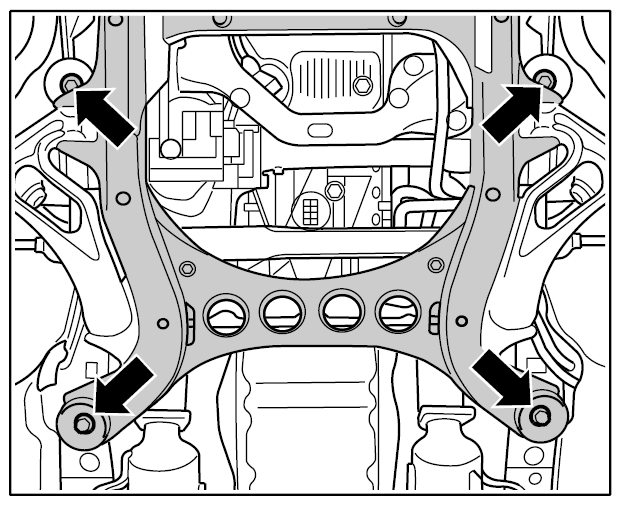

Screw in bolts -arrows- on front-axle carrier.

Fig 6: Locating Bolts On Front-Axle Carrier
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in bolt -arrow- connecting spring strut to trailing arm.

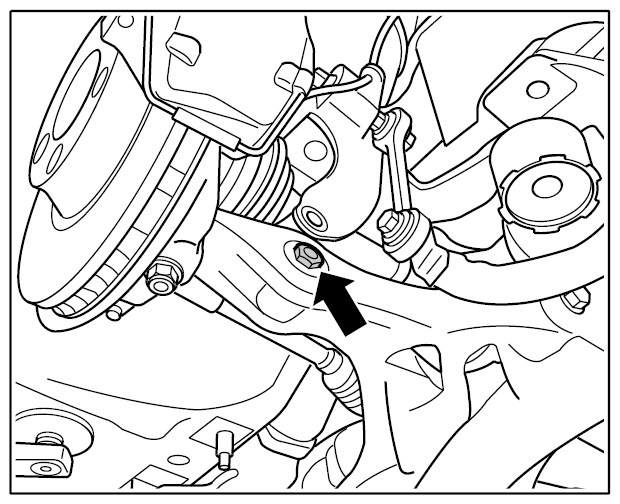

Fig 7: Locating Bolt Connecting Spring Strut To Trailing Arm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

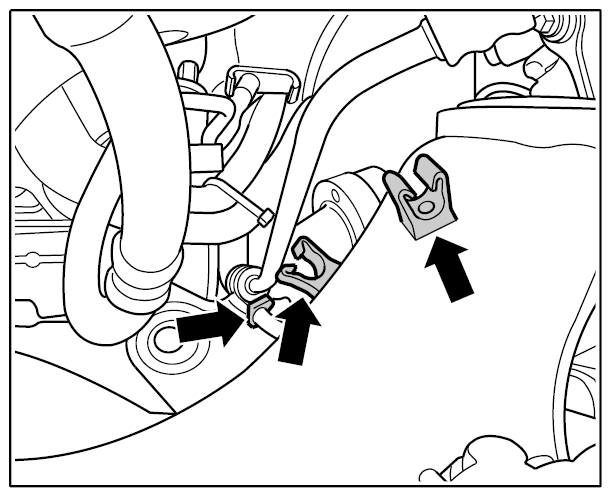

Engage servo line in the three holders -arrows- on the front-axle carrier.

Fig 8: Locating Servo Line Holders
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Screws which are tightened with a torque angle must be replaced with new ones .
Tighten fastening screw for all-wheel final drive. → Initial tightening: 90 Nm (67 ft. lb.) → Final tightening: 90°
Install cover plate for all-wheel final drive by screwing in and tightening three fastening screws. → Tightening torque: 10 Nm (7.5 ft. lb.)
Information
- Screws which are tightened with a torque angle must be replaced with new ones .
Screw in drive shaft screws.

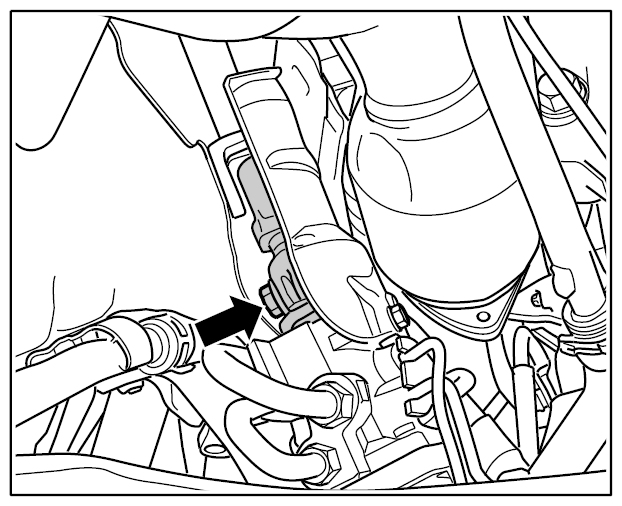

Connect steering column to steering gear. Screw in new screw.

Fig 9: Connecting Steering Column To Steering Gear
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install cover plate on the steering.

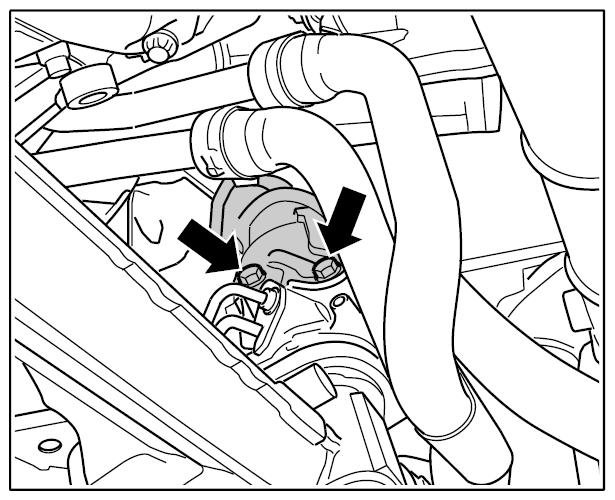

Fig 10: Locating Cover Plate On Steering
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect Servotronic plug to the steering gear.

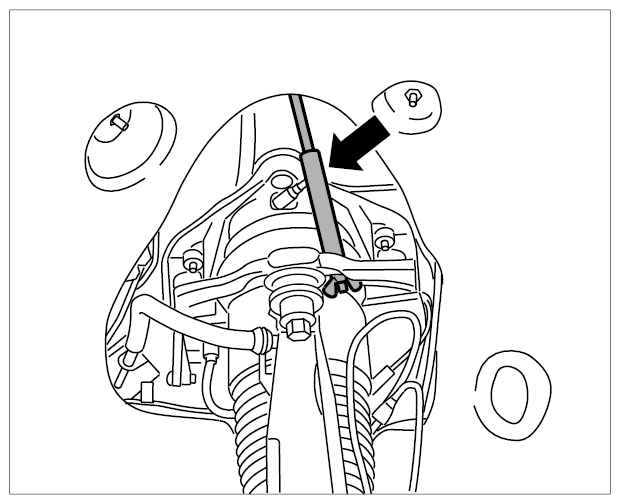

Remove special tool Spring Compressor VW 552 from the spring strut.

Fig 11: Identifying Installation Position Of Spring Compressor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in plastic nuts -arrows- on front right wheel housing liner.

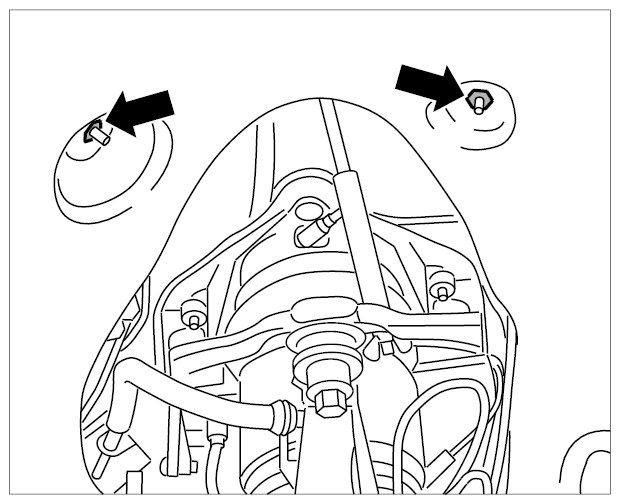

Fig 12: Locating Wheel Housing Liner Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

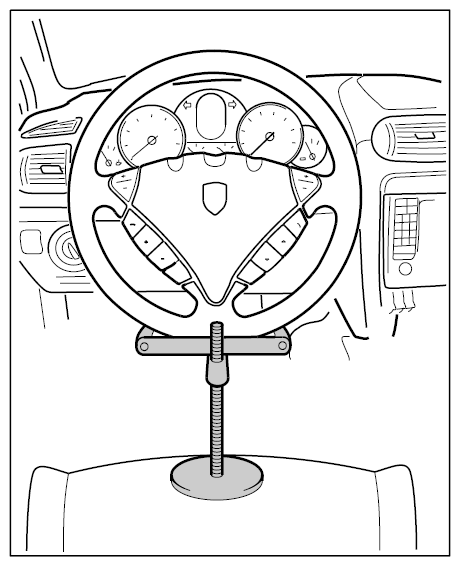

Remove steering-wheel holder -figure- .

Fig 13: Adjusting Steering Wheel Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- For details of tightening torques for running gear parts, see Group 4 (Running gear) → WM 4X00IN TIGHTENING TORQUES FOR FRONT AXLE .
Tighten bolts -arrows- on front-axle carrier.

Fig 14: Locating Bolts On Front-Axle Carrier
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
