Tools And Materials

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

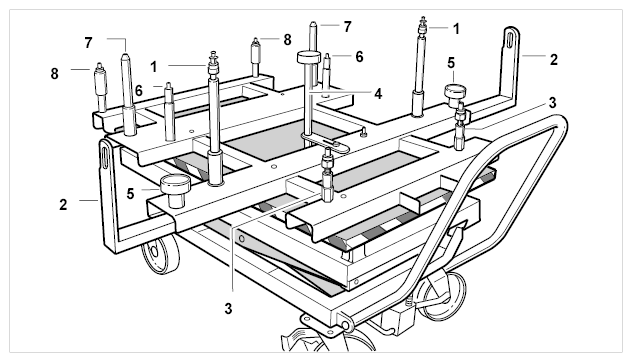

Fig 1: Identifying Elevating Platform
G09934871Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Assembly Mandrel  → Height can be adjusted; used for mounting in the engine carrier; equipped with a locking screw to prevent engine from tilting and for height adjustment. Item 2 In Base Carrier
  2. Wheel Hub Holder  → Secures the spring struts to prevent them from tilting. Inserted From The Side Into The Second Cross Member From The Front
  3. Assembly Mandrel  → Height can be adjusted; used for mounting in the front-axle carrier at the front; equipped with a locking screw to prevent engine from tilting and for height adjustment. Item 1 In Base Carrier
  4. Support  → Not used here.
  5. Wishbone Support  → Used in conjunction with -5-  to protect the wheel suspension and spring struts from damage.
  6. Assembly Mandrel  → For mounting on the front-axle carrier at the rear. Item 3 In Base Carrier
  7. Assembly Mandrel  → Guide for positioning the elevating platform into the body; first moves into a bore in the body for centering roughly. Item 4 In Base Carrier
  8. Assembly Mandrel  → For mounting on the transmission cross member. Item 5 On Base Carrier
Fig 2: Overview Of Tools
G09934872Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Wheel Hub Holder  → Secures the spring struts to prevent them from tilting.
  2. Support  → Prevents the engine from tilting backwards. Not generally used.
  3. Lateral Mounting Mandrel For Engine Carrier  → Height can be adjusted; used for mounting in the engine carrier; equipped with a locking screw to prevent engine from tilting and for height adjustment. Item 2 in base carrier
    1. 3.1  - Support With Height Adjustment  → Screwed into part 3.
    2. 3.2  - Protection Against Tilting  → Screwed into part 3.1. Prevents the engine from tilting forward.
  4. Front Front-Axle Carrier Mounting  → Height can be adjusted; used for mounting in the front-axle carrier at the front; equipped with a locking screw to prevent engine from tilting and for height adjustment. Item 1 In Base Carrier
    1. 4.1  - Support With Height Adjustment  → Screwed into part 4.
  5. Rear Front-Axle Carrier Mounting  → Item 3 In Base Carrier
  6. Mounting In The Body  → Item 4 In Base Carrier
  7. Mounting For Transmission Cross Member  → Item 5 In Base Carrier
