New Version With Supplementary Set

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

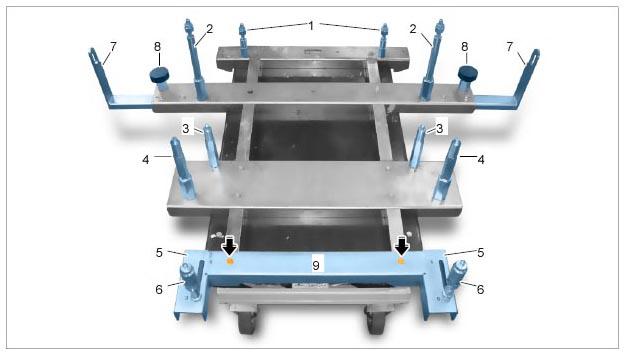

Fig 1: Identifying Complete Structure Of Base Carrier - New Version
G09934874Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Mounting mandrel for front front-axle carrier
  2. Mounting mandrel for engine carrier
  3. Mounting mandrel for rear front-axle carrier
  4. Mounting mandrel for centering in the body.
  5. Position of mounting mandrel on transmission cross member
    • Cayenne Diesel/Hybrid
    • Cayenne/S/GTS/Turbo/Turbo S
  6. Position of mounting mandrel on transmission cross member
    • Cayenne S Diesel
  7. Bracket for wheel carrier
  8. Mounting for lower wishbone
  9. Supplementary set

arrows  - Nuts and screws

  1. Convert engine/transmission mounting.
    1. 1.1. Unscrew nuts -arrows -  .
    2. 1.2. Remove nuts and screws.
    3. 1.3. Remove old cross member and replace it with new cross member -9-  .
    4. 1.4. Screw in and tighten screws and nuts.
