Installing Sealing Ring For Cardan Flange: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Install sealing ring.
1. 1.1. Half-fill the space between the sealing and dust lips -arrow- on the new sealing ring with sealing grease.

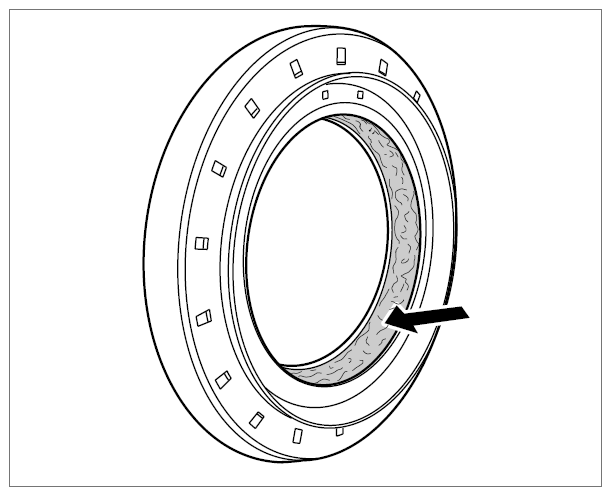

  Fig 1: Identifying Sealing Ring
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Mask the splines on the operator shaft with adhesive tape to prevent damage to the new sealing ring.
3. 1.3. Slide the sealing ring as far as it will go onto the final drive.
4. 1.4. Tap the sealing ring in as far as it will go using assembly tool T10432 . Do not bend the sealing ring. → Installing sealing ring

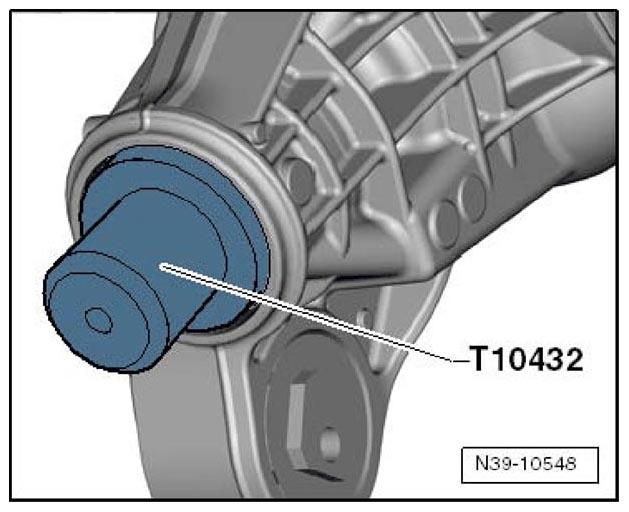

  Fig 2: Installing Sealing Ring
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. 1.5. Remove adhesive tape.
Fit dust boot.
1. 2.1. Tap in new dust boot using Thrust Piece T10432/1 . → Fitting dust boot

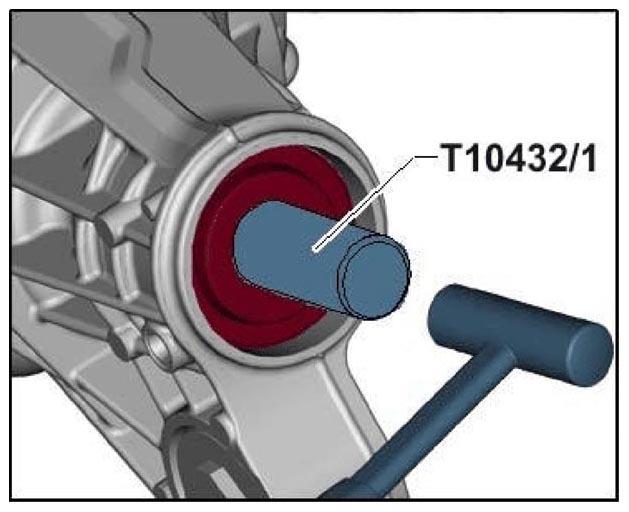

  Fig 3: Fitting Dust Boot
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit new O-ring -1- and new circlip -2- .

Fig 4: Identifying Sealing Ring And Circlip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
