Removing Servo Motor On Transfer Gear

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

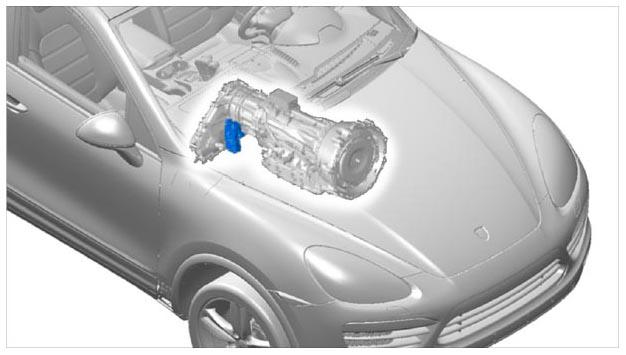

Fig 1: Identifying Installation Position Of Servo Motor On Transfer Gear

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Release electric plug connection on wire harness -1- for servo motor -a- and pull it off -arrow- .

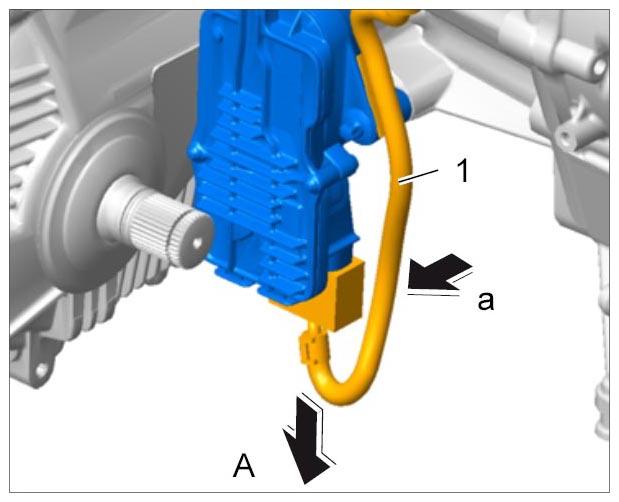

Fig 2: Removing Electric Plug Connection For Servo Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release fixing clip -3- on wire harness at the servo motor -A- .

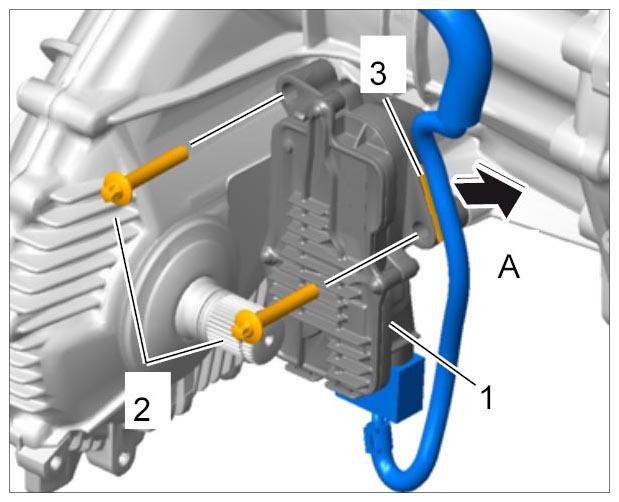

Fig 3: Removing Fixing Clip For Servo Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -2- at the servo motor.
