Installing Servo Motor On Transfer Gear

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

If the servo motor has to be replaced, refer to the document → 397855 REPLACING SERVO MOTOR ON TRANSFER GEAR .

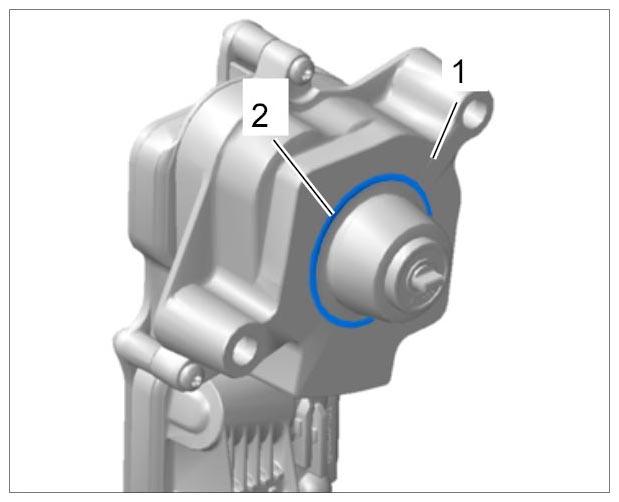

Replace sealing ring -2- on servo motor -1- .

Fig 1: Identifying Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position the servo motor on the transmission.

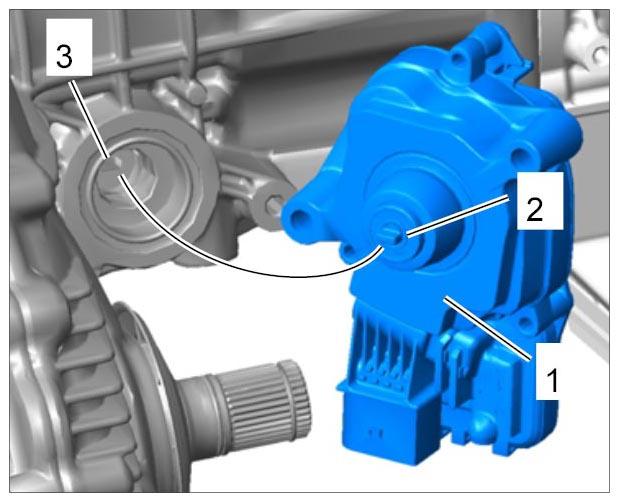

When installing the servo motor -1- , make sure that the groove -2- on the servo motor fits into the gap -3- on the transfer gear.

Fig 2: Fitting Servo Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

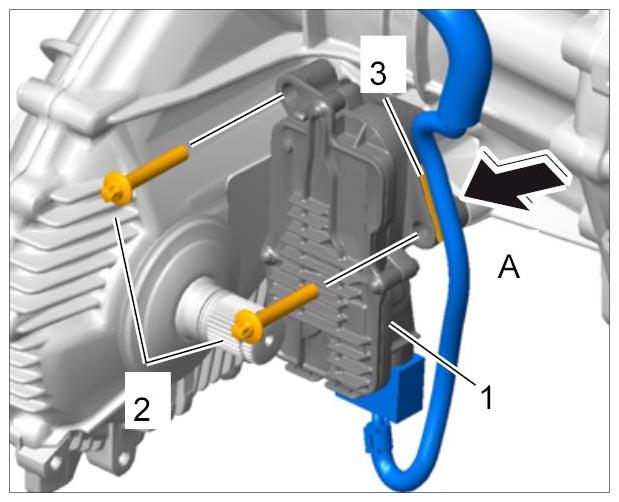

Screw in fastening screws -2- on the servo motor.

Fig 3: Installing Servo Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in fixing clip -3- on wire harness -A- .

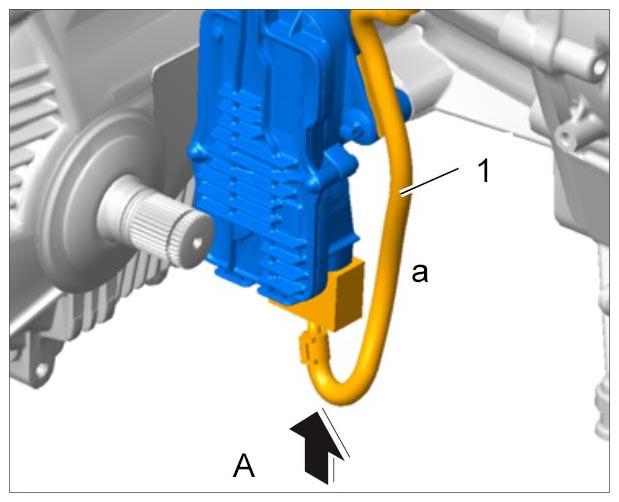

Plug in electric plug connection for servo motor wire harness -1- (-A- ) and lock the connector -a- .

Fig 4: Plugging Connection For Servo Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
