Removing Transverse Lock Servo Motor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot fluid

Danger of scalding

→ Avoid contact with hot fluid.

→ Wear personal protective gear.

Information

Avoid minor oil leaks when removing the servo motor .

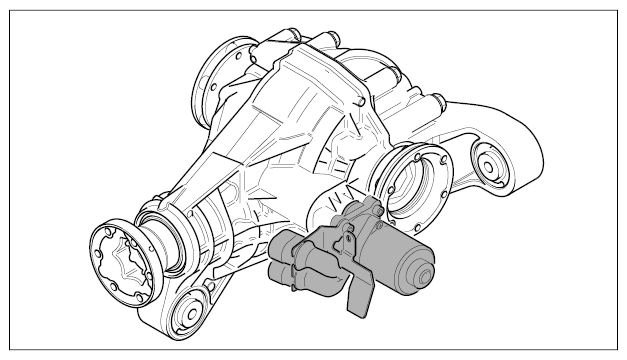

Fig 1: Overview Of Rear Final Drive With Servo Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

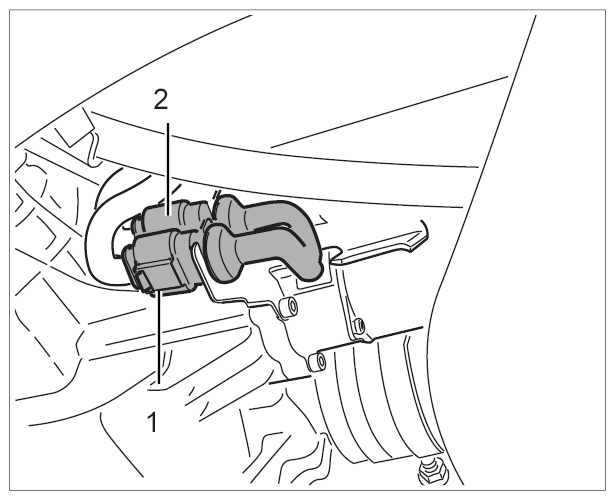

Pull cable plug -1, 2- off the servo motor.

Fig 2: Identifying Electric Plug On Servo Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

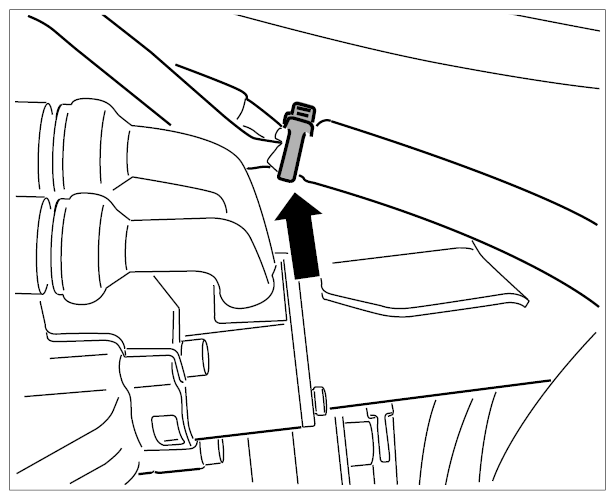

Pull off fastening element -arrow- for cable lead and place lead aside.

Fig 3: Locating Cable Lead Fastening
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew four fastening screws -arrows- on the servo motor.

Fig 4: Locating Servo Motor Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Place oil collection container underneath.
Remove servo motor.
