Installing Transverse Lock Servo Motor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Replace sealing ring -arrow- on servo motor.

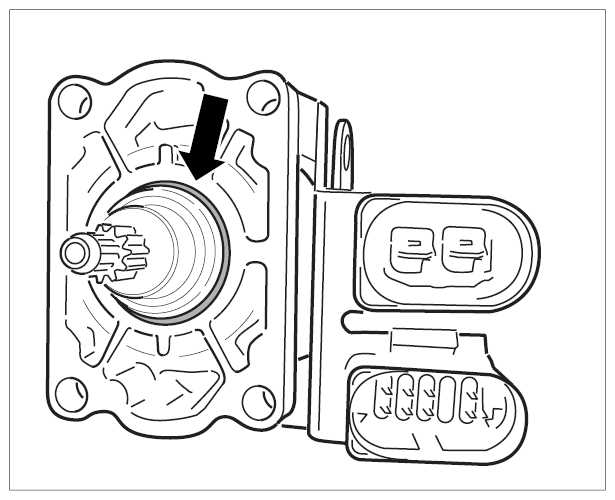

Fig 1: Locating Sealing Ring On Servo Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install servo motor.
Tighten four screws -arrows- on the servo motor to → Tightening torque: 10 Nm (7.5 ft. lb.) .

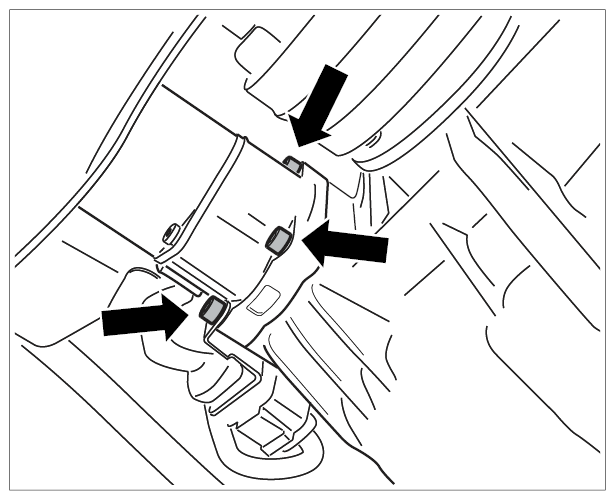

Fig 2: Locating Servo Motor Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install fastening element -arrow- for cable lead.

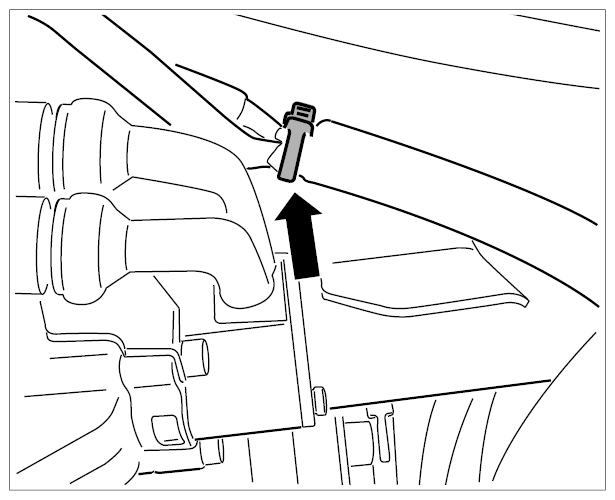

Fig 3: Locating Cable Lead Fastening
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect cable plug -1, 2- to servo motor.

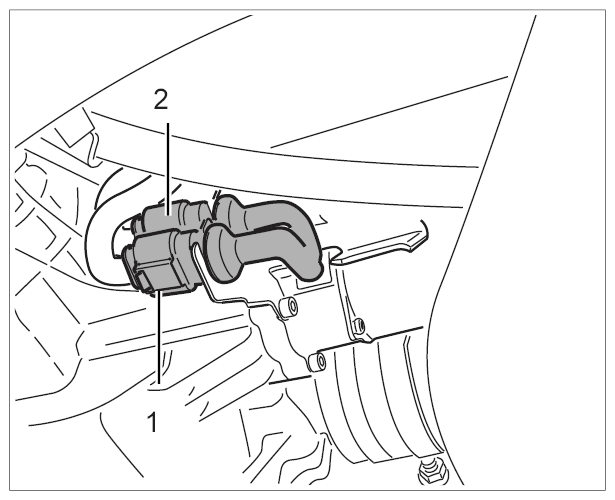

Fig 4: Identifying Electric Plug On Servo Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
