Removing Transfer Gear

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing

→ Secure components to prevent them from falling down.

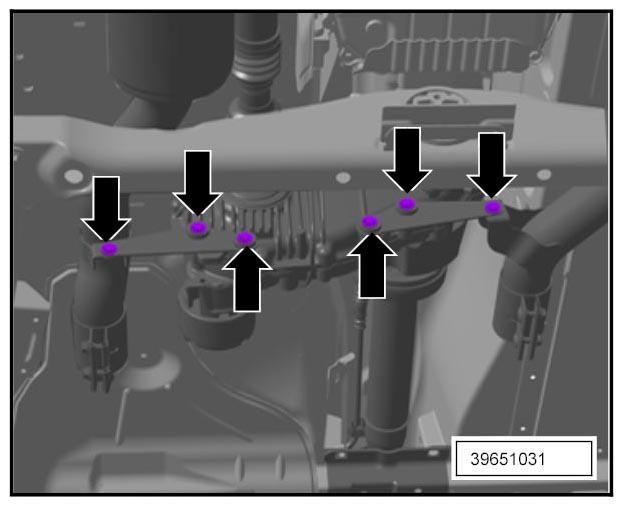

Unscrew both exhaust system holders on the transfer gear -arrows- .

Fig 1: Locating Exhaust System Holders And Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

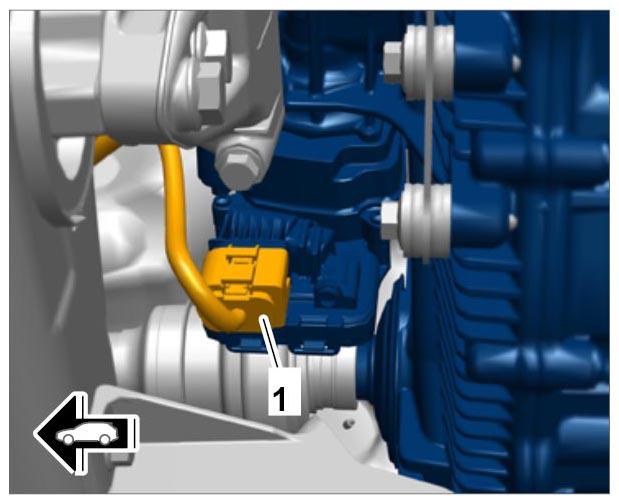

Release and disconnect cable plug -1- on the transfer gear at the bottom.

Fig 2: Identifying Electric Connector On Transfer Gear
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Support the automatic transmission at the oil pan using Transmission Jack VAG. 1383 A WE 1082 .
Remove transmission cross member.

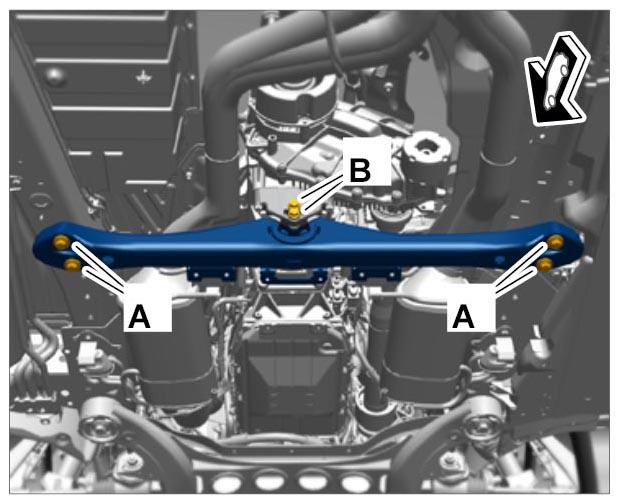

1. 4.1. Unscrew M10 fastening screws -B- on the transmission mount.
2. 4.2. Unscrew M10 fastening screws -A- at the outside and remove cross member.

  Fig 3: Identifying Fastening Screws On Transmission Cross Member
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information
  - Get one or more people to help when installing/removing heavy or difficult-to-reach components .
  - This will prevent or reduce the risk of possible damage .
Remove transfer gear.

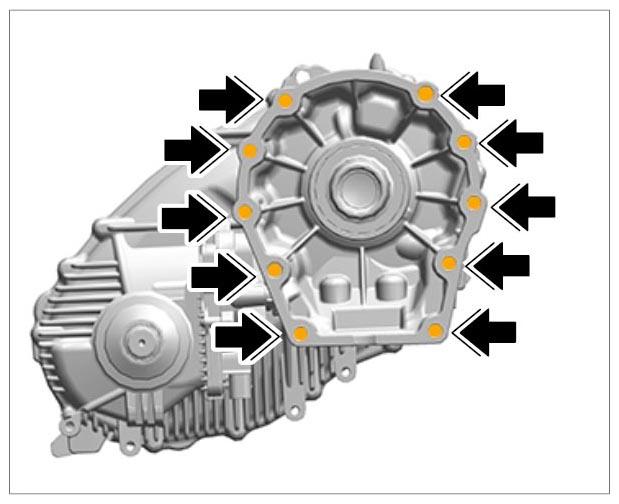

1. 5.1. Unscrew M10 aluminum screws on the transfer gear -arrows- .
2. 5.2. Lower the automatic transmission slightly using the transmission jack if necessary.
3. 5.3. Replace aluminum screws.

  Fig 4: Locating Transfer Gear Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove transfer gear from the automatic transmission with the help of another person and set it down.
