Removing Rubber Mounting For Rear Final Drive, Drive Side

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

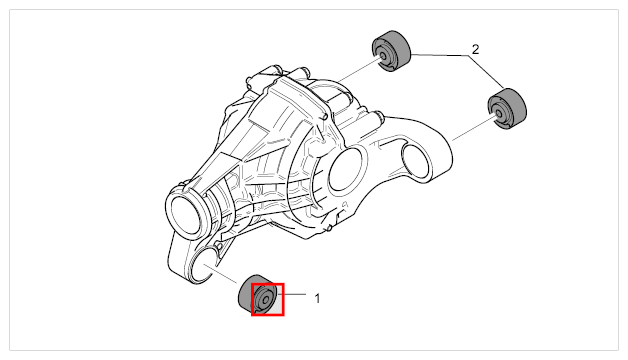

Fig 1: Identifying Rubber Mounting On Drive Side 1
G09934792Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Mark rubber mounting with respect to transmission housing in installation position -arrow-  .

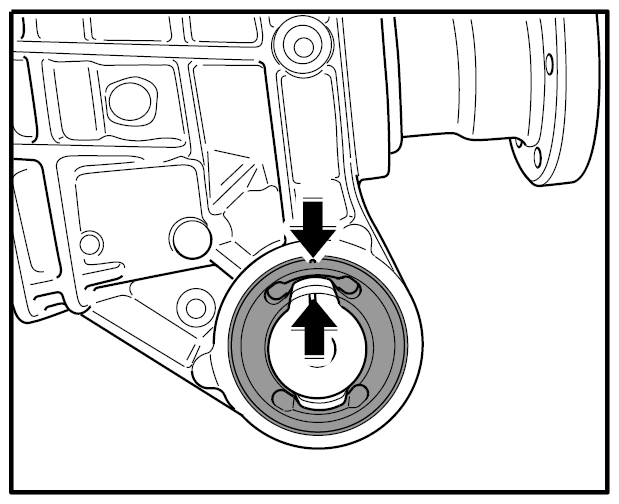

    Fig 2: Marking Rubber Mounting With Respect To Housing
    G09934793Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Position special tool Assembly Fixture 9716  on rubber mounting → Removal on drive side  .

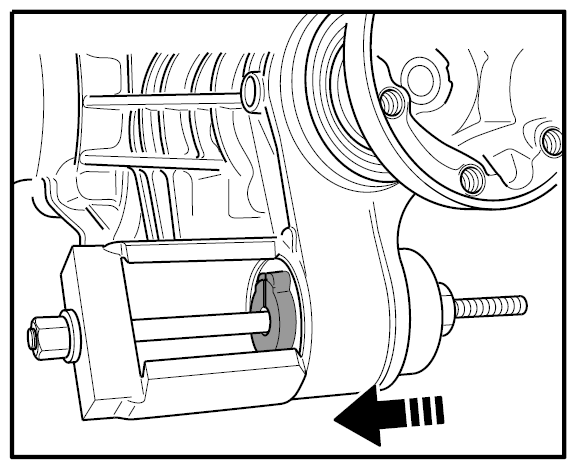

    Fig 3: Removing Rubber Mounting
    G09934794Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove rubber mounting -direction of arrow-  .
