Installing Rubber Mounting For Rear Final Drive, Output Side

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

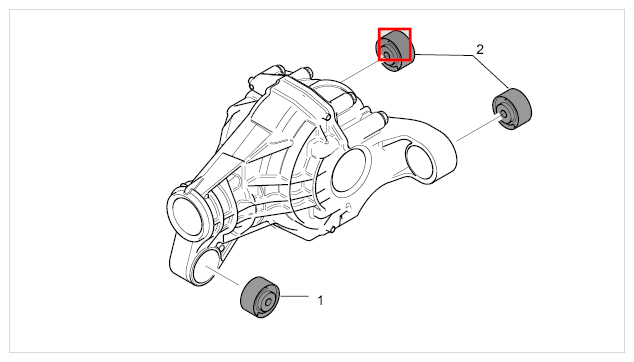

Fig 1: Identifying Rubber Mounting On Output Side 2

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Noises in drive line

Installation position of rubber mounting bulge is incorrect Rubber mounting bulge must be installed vertically into housing
Installation position of mount in housing is incorrect Pay attention to installation dimension of mount to housing

Position special tool Assembly Fixture 9716 on rubber mounting and align the markings.

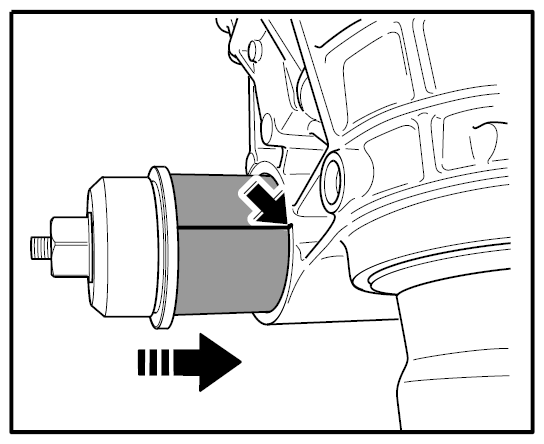

Fig 2: Positioning Special Tool Assembly Fixture 9716 On Rubber Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press rubber mounting flush → see Fig 3 into the housing.

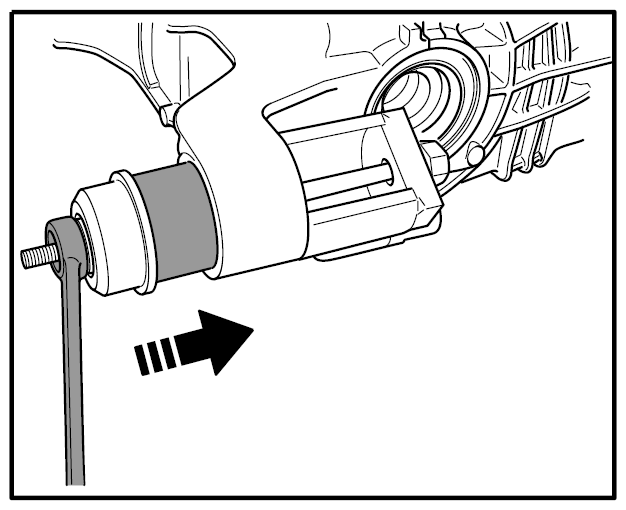

Fig 3: Pressing Rubber Mounting Flush
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
