Installing Rubber Mounting For Rear Final Drive, Drive Side

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

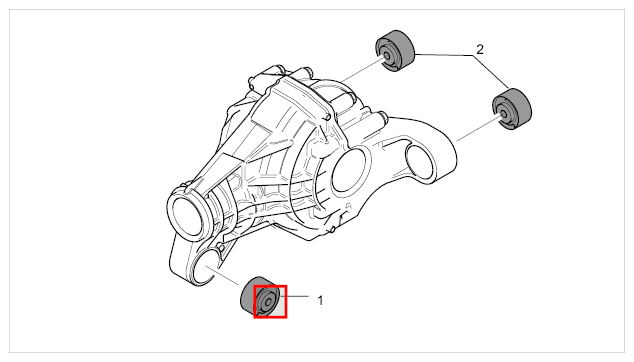

Fig 1: Identifying Rubber Mounting On Drive Side 1

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Noises in drive line

Installation position of rubber mounting bulge is incorrect Rubber mounting bulge must be installed vertically into housing
Installation position of mount in housing is incorrect Pay attention to installation dimension of mount to housing

Position special tool Assembly Fixture 9716 on rubber mounting → Installing rubber mounting on drive side and align the markings.

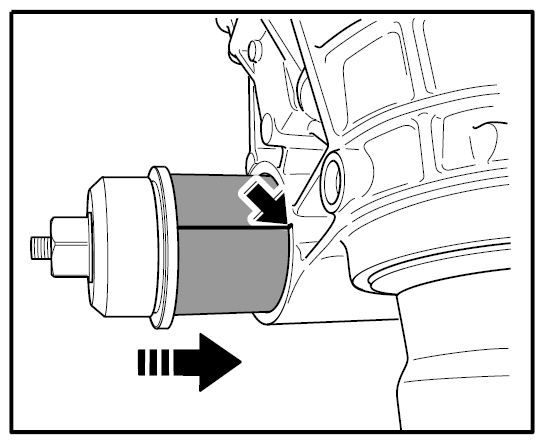

Fig 2: Installing Rubber Mounting On Drive Side
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Noises in drive line
- Installation position of rubber mounting bulge is incorrect Rubber mounting bulge must be installed vertically into housing
- Installation position of mount in housing is incorrect Pay attention to installation dimension of mount to housing
Press rubber mounting flush -direction of arrow- into the housing.
