Installing Rubber Mounting For All-Wheel Final Drive, Drive Side

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

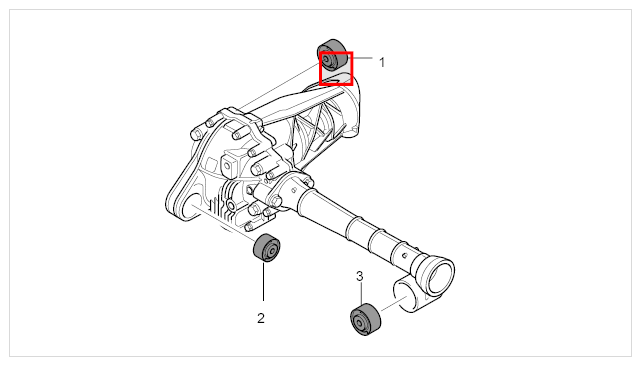

Fig 1: Identifying Rubber Mounting On Drive Side 1

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Noises in drive line

Installation position of rubber mounting bulge is incorrect Rubber mounting bulge must be installed vertically into housing
Installation position of mount in housing is incorrect Pay attention to installation dimension of mount to housing

Mark center of bulge in rubber mounting → Marking center of rubber mounting .

Fig 2: Marking Centre Of Rubber Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position rubber mounting in housing using special tool assembly fixture 9716 .
Pull in rubber mounting in direction of travel until installation position is reached. Measure distance between assembly fixture ring and housing using Calliper Gauge Nr. 139 Pos. 1 . → Distance: 7.5 mm+/- 0.1 mm

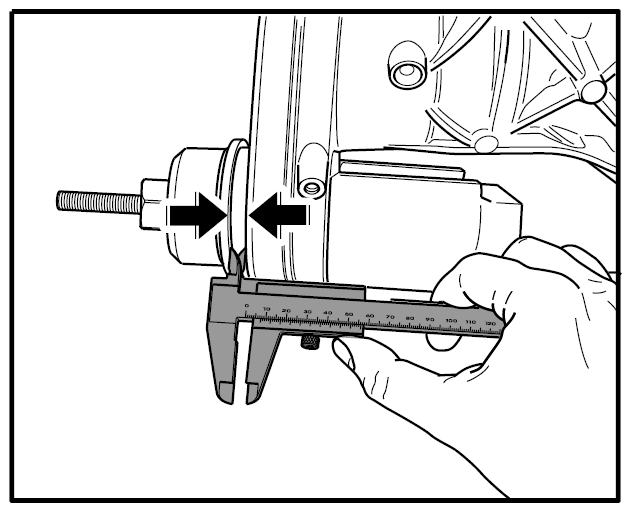

Fig 3: Checking Installation Position Of Rubber Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
