Installing Sealing Ring For Left Flanged Shaft

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

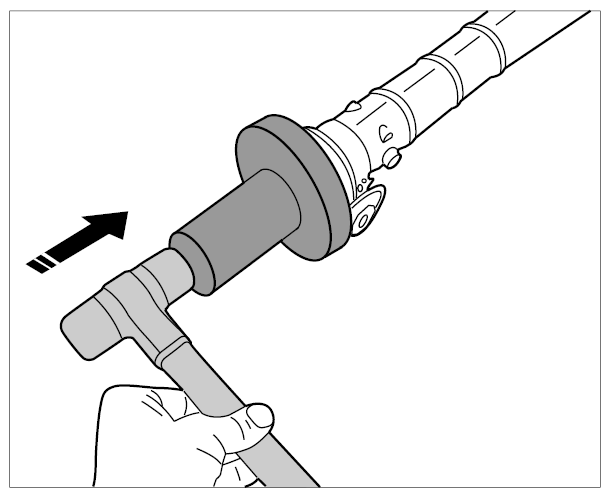

Tap the sealing ring in as far as it will go using Pressure Piece T10260 → Installing sealing ring . Do not bend the sealing ring.

Fig 1: Installing Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

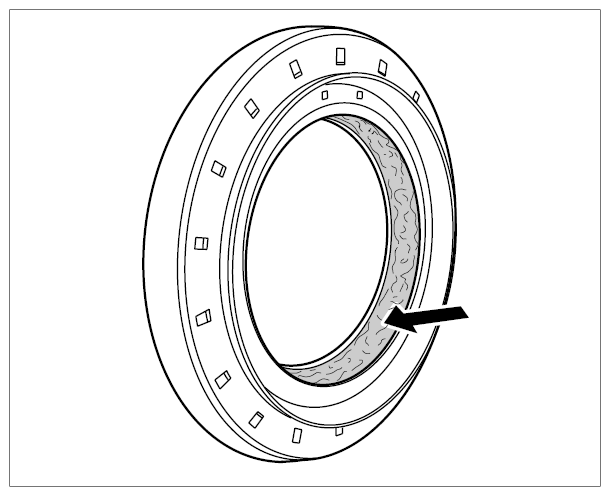

Half-fill the space between the sealing and dust lips -arrow- on the new sealing ring with sealing grease.

Fig 2: Identifying Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

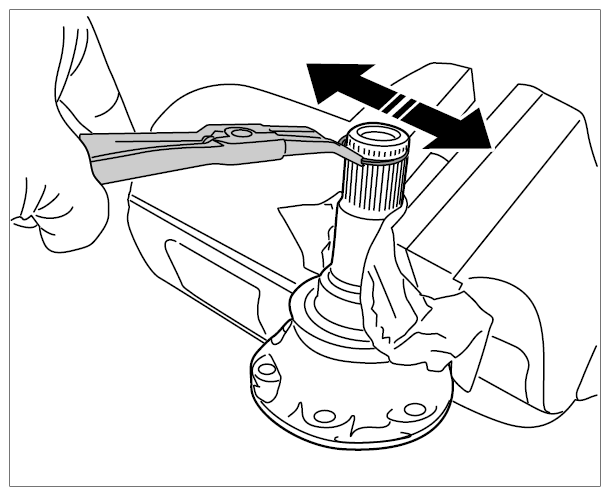

Replace circlip of long flanged shaft.

Fig 3: Replacing Circlip Of Long Flanged Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push flanged shaft into transmission until it engages.
